GBJA3510_T0_00301

Overview

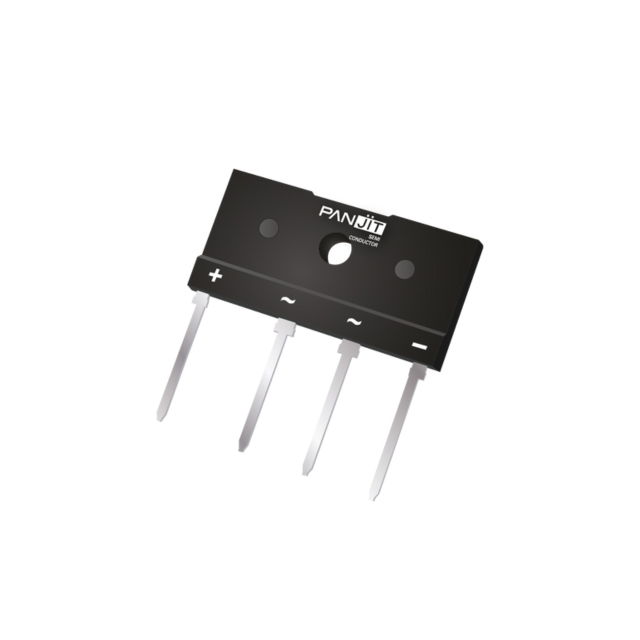

The GBJA3510 is a glass passivated low profile single-phase bridge rectifier manufactured by Panjit International Inc. It features a maximum repetitive peak reverse voltage (VRRM) of 1000 V and a maximum average forward current (IF(AV)) of 35 A with a heatsink, or 3.6 A without one. The device supports a peak forward surge current (IFSM) of 360 A at 25°C for an 8.3 ms half-sine wave. Electrical characteristics include a maximum forward voltage drop of 1.0 V at 17.5 A and a maximum reverse leakage current of 5 µA at 25°C. The component operates within a junction temperature range of -55°C to +150°C and utilizes a thin GBJA package.

Feature Summary

• Glass passivated chip junction construction
• Thin single in-line package design
• High surge current capability

Applications

• Slim adapter power supplies
• Game console power circuits
• Television power systems

Procurement Notes

Verify the specific ordering suffix T0_00301 against official Panjit documentation to confirm packaging details and marking variations. Ensure compliance with RoHS and halogen-free requirements as stated in the mechanical data. Confirm that the application does not involve life-saving or high-reliability equipment prohibited by the manufacturer disclaimer.

Selection Notes

Select this component when a low-profile bridge rectifier is required for space-constrained designs such as slim adapters. The 1000 V rating suits general-purpose AC-DC conversion. Consider thermal management carefully, as the average forward current drops significantly from 35 A to 3.6 A if no heatsink is used. Verify lead solderability standards J-STD-002 and JESD22-B102 compatibility.

Part Context

This part belongs to the GBJA series of glass passivated low profile bridge rectifiers from Panjit International Inc. The GBJA package is distinct from standard GBJ packages due to its reduced height, making it suitable for applications requiring compact form factors while maintaining high current handling capabilities up to 35 A.

Replacement Considerations

Direct substitutes must match the 1000 V / 35 A rating and GBJA footprint. Generic GBJ replacements may have different height constraints. Verify pinout compatibility and thermal resistance values before substitution.
