Product Detailed Parameters

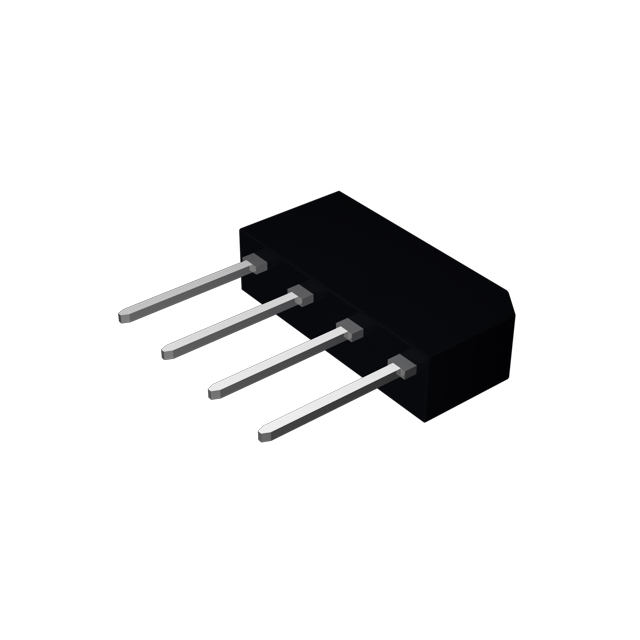

- Description：BRIDGE RECT 1PHASE 600V 3A GBL
- Series：-
- Mfr：SURGE
- Package：Bag
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：600 V
- Current - Average Rectified (Io)：3:00 AM
- Voltage - Forward (Vf) (Max) @ If：1 V @ 2 A
- Current - Reverse Leakage @ Vr：10 µA @ 600 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-SIP, GBL
- Supplier Device Package：GBL
- Grade：-
- Qualification：-
Download product information
Overview
The SURGE GBL06 is a glass-passivated bridge rectifier designed for printed circuit board mounting. It features a plastic package with Underwriters Laboratory flammability classification 94V-0. The device provides a maximum repetitive peak reverse voltage of 600 volts and supports a forward current of 4.0 amperes. It includes a surge overload rating of 125 amperes peak. The component allows for any mounting position and utilizes a standard bridge rectifier configuration.
Feature Summary
- Glass passivation for junction protection
- Ideal for printed circuit board applications
- High surge overload capability
Applications
- Printed circuit board power supply circuits
- General purpose AC to DC conversion
- Industrial equipment power modules
Procurement Notes
Verify the manufacturer designation as SURGE against the provided documentation, noting that similar part numbers are frequently associated with Vishay General Semiconductor or HY Electronic. Confirm the specific datasheet version and compliance certifications such as UL recognition before finalizing procurement orders to ensure alignment with project requirements.
Selection Notes
Select this component when a 600V reverse voltage rating and 4A continuous forward current are required for PCB-mounted applications. Ensure the design accommodates the 125A peak surge rating. Verify thermal management needs based on the specified power dissipation characteristics and ambient operating conditions defined in the official electrical specifications.
Part Context
The GBL06 belongs to the GBL series of bridge rectifiers, which are widely used in general-purpose power applications. This series typically offers robust performance in compact packages suitable for surface mount or through-hole technologies depending on the specific variant. The GBL06 specifically targets applications requiring reliable rectification at moderate voltages and currents.
Replacement Considerations
Cross-reference with Vishay GBL06 or HY Electronic GBL06L for potential compatibility. Verify pinout configurations, package dimensions, and electrical ratings match exactly before substitution. Ensure the replacement component meets the same safety and environmental standards required by the original design.
