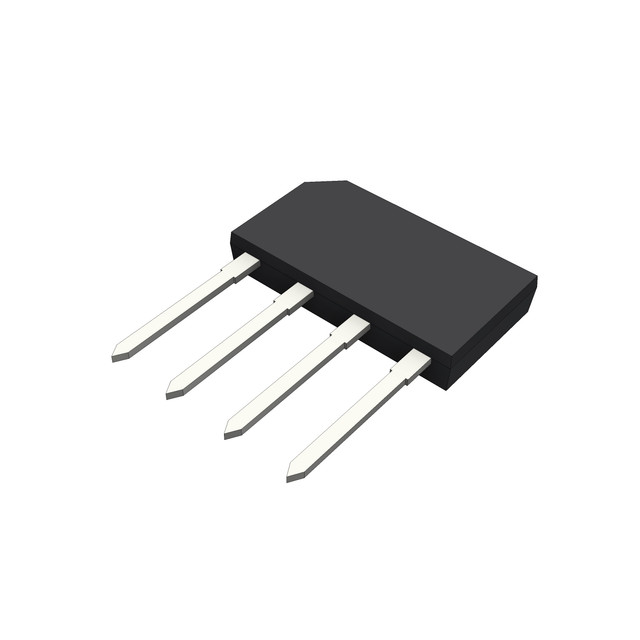

GBL06L

$1.06

Description：BRIDGE RECT 1PHASE 600V 4A 2GBJ
Series：GBL

SKU:ad6caf8d7689 Category: Bridge Rectifiers Brand: HY Electronic (Cayman) Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BRIDGE RECT 1PHASE 600V 4A 2GBJ
Series：GBL
Mfr：HY Electronic (Cayman) Limited
Package：Tube
Diode Type：Single Phase
Technology：Standard
Voltage - Peak Reverse (Max)：600 V
Current - Average Rectified (Io)：4:00 AM
Voltage - Forward (Vf) (Max) @ If：920 mV @ 4 A
Current - Reverse Leakage @ Vr：5 µA @ 600 V
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：4-SIP, GBJ
Supplier Device Package：2GBJ
Grade：-
Qualification：-

Download product information

GBL06L

Overview

The GBL06L is a glass passivated bridge rectifier manufactured by HY Electronic (Cayman) Limited. It is designed for printed circuit board mounting with plastic material classified as flammability rating 94V-0. The component supports a reverse voltage of 600 Volts and a forward current of 4.0 Amperes. It features a surge overload rating of 125 amperes peak. The device allows for any mounting position.

Feature Summary

Glass passivation technology
Surge overload capability
PCB ideal design

Applications

Printed circuit board assembly

Procurement Notes

Verify the manufacturer designation matches HY Electronic (Cayman) Limited on the component marking. Confirm the part number GBL06L corresponds to the 600V reverse voltage and 4.0A forward current specifications. Ensure the package dimensions align with the official datasheet drawings to avoid compatibility issues in PCB layout.

Selection Notes

Select this component when a bridge rectifier with 600V reverse voltage and 4.0A continuous forward current is required. The glass passivation provides protection against environmental factors. The 94V-0 flammability rating ensures safety compliance for plastic housing materials in electronic assemblies.

Part Context

This component belongs to the GL series of glass passivated bridge rectifiers from HY Electronic. These devices are engineered for general-purpose power supply applications where reliable rectification is necessary. The series offers various voltage and current ratings to suit different circuit requirements.

Replacement Considerations

Check for compatible bridge rectifiers with identical 600V reverse voltage, 4.0A forward current, and similar package dimensions. Verify that alternative components meet the same 94V-0 flammability classification and surge overload ratings.
