GBPC1004W

$1.88

Description：BRIDGE RECT 1PHASE 400V 10A
Series：GBPC10

SKU:d3df8026a482 Category: Bridge Rectifiers Brand: SURGE

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BRIDGE RECT 1PHASE 400V 10A
Series：GBPC10
Mfr：SURGE
Package：Bag
Diode Type：Single Phase
Technology：Standard
Voltage - Peak Reverse (Max)：400 V
Current - Average Rectified (Io)：10:00 AM
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 5 A
Current - Reverse Leakage @ Vr：5 µA @ 400 V
Operating Temperature：-65°C ~ 150°C (TJ)
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

GBPC1004W

Overview

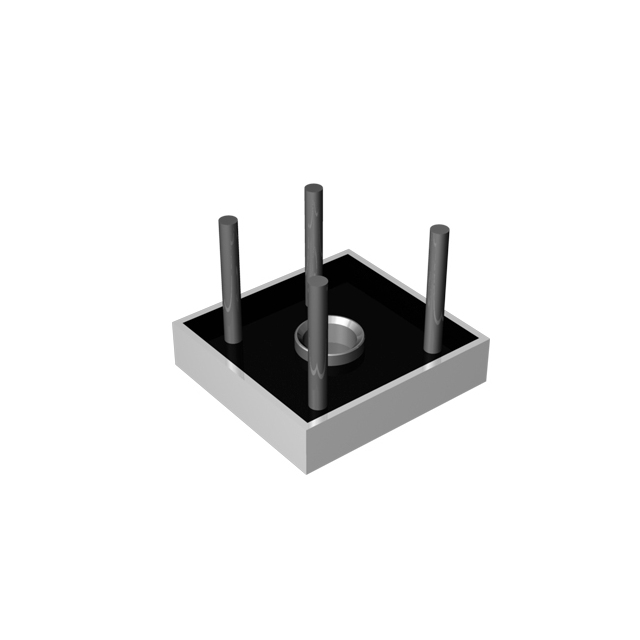

The SURGE GBPC1004W is a single-phase bridge rectifier diode constructed from silicon. It features a plastic GBPC-W package with four pins and an isolated flange mount configuration. The device supports a maximum average forward output current of 15 A and has a repetitive peak reverse voltage rating of 400 V. It is designed to operate within a junction temperature range of -55 °C to +150 °C, with a non-repetitive peak forward surge current capability of 300 A.

Feature Summary

Four-element bridge rectifier configuration for single-phase AC-to-DC conversion
Isolated flange mount design for efficient thermal dissipation
Plastic epoxy encapsulation providing mechanical protection

Applications

AC/DC desktop switch power supply adapters
Industrial power supply units
General-purpose rectification in electronic circuits

Procurement Notes

Verify the manufacturer designation as SURGE against official component databases, as this part number is widely documented under Vishay. Confirm RoHS compliance status, as standard GBPC1504W variants are often marked non-compliant. Ensure the specific suffix 'W' corresponds to the intended flange mount variant and verify pinout compatibility before integration.

Selection Notes

Select this component for applications requiring 15 A continuous current handling at 400 V reverse voltage. The flange mount package necessitates a heatsink interface for optimal thermal management. Verify that the operating environment stays within the specified -55 °C to +150 °C temperature range to ensure reliability.

Part Context

This component belongs to the GBPC series of bridge rectifiers, commonly utilized in power supply designs. While frequently associated with Vishay, SURGE may represent a specific branding or distributor marking for equivalent silicon bridge rectifier technology. The GBPC-W suffix typically denotes the specific plastic flange-mount housing style.

Replacement Considerations

Publicly confirmed substitute part numbers for the SURGE GBPC1004W are not available in verified sources. Standard equivalents such as the Vishay GBPC1504W share identical electrical ratings and physical dimensions but require verification of manufacturer-specific documentation.
