GBPC15005-G

Overview

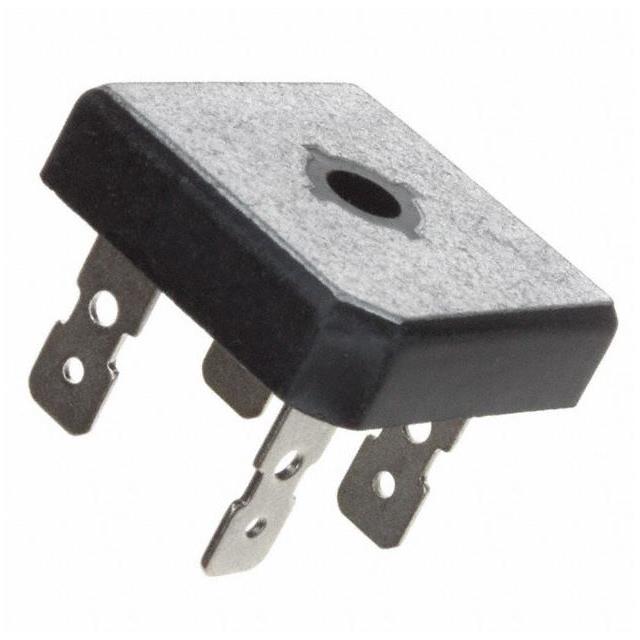

The GBPC15005-G is a single-phase bridge rectifier manufactured by Comchip Technology. It features a maximum average forward rectified current of 15A and a repetitive peak reverse voltage of 50V. The device utilizes a GBPC-W package with through-hole solder pin termination. Electrical characteristics include a maximum RMS diode voltage of 70V, a maximum DC blocking voltage of 50V, and a maximum non-repetitive peak forward surge current of 350A at 60Hz for one half-cycle. Forward voltage drop is rated at a maximum of 1.1V at 15A. The component operates within a junction temperature range of -55°C to +150°C and has a specified thermal resistance from junction to lead of 40°C/W.

Feature Summary

• Provides full-wave rectification in a compact through-hole package suitable for PCB mounting.

Applications

• Power supply units requiring 15A rectification at low voltages.

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm electrical ratings and package type. Confirm RoHS compliance status and end-of-life notifications directly with Comchip Technology or authorized distributors before procurement planning.

Selection Notes

Select this component when a 15A current rating and 50V reverse voltage are required for single-phase bridge rectification. Ensure the application environment supports the specified operating temperature range and that the PCB layout accommodates the GBPC-W package dimensions and thermal requirements.

Part Context

This component belongs to the GBPC series of bridge rectifiers from Comchip Technology. The series offers various current and voltage combinations in a standardized plastic encapsulated package designed for general-purpose power conversion applications.

Replacement Considerations

Cross-reference with other 15A, 50V bridge rectifiers in the GBPC-W package format. Verify pinout compatibility and thermal performance metrics before substituting with parts from different manufacturers.
