GP.1575.12.4.A.02

Antennas RF Overview

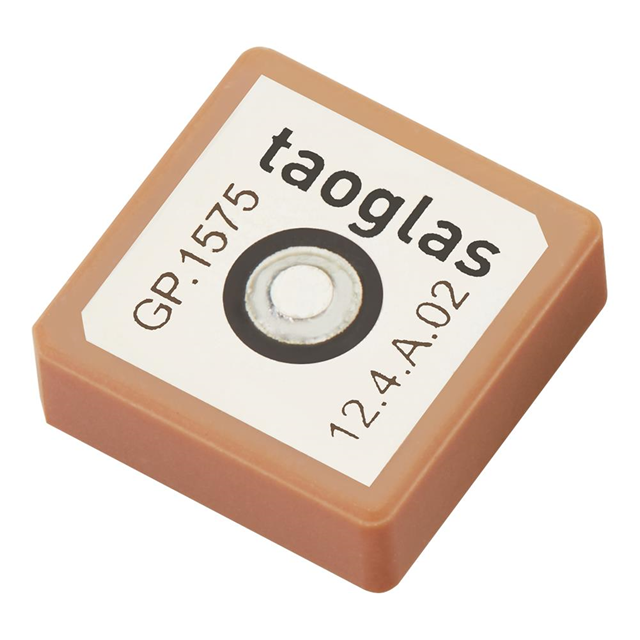

The GP.1575.12.4.A.02 is a ceramic patch RF antenna manufactured by Taoglas Limited, designed for Global Navigation Satellite System (GNSS) applications including GPS and Galileo. It operates within a frequency range of 1.572GHz to 1.578GHz with a center frequency of 1.575GHz. The component features a gain of 2.73dBi and a Voltage Standing Wave Ratio (VSWR) of 2. It utilizes surface mount technology with solder termination and has a maximum height of 4.00mm. The antenna supports navigation standards and is RoHS compliant.

Antennas RF Feature Summary

• Miniaturized ceramic patch construction utilizing XtremeGain technology for optimized signal performance
• Dual-band support for GPS and Galileo satellite navigation systems
• Surface mount design suitable for direct integration into compact electronic assemblies

Antennas RF Applications

• GPS receiver modules
• Galileo navigation devices
• Handheld GNSS equipment
• Embedded tracking systems

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required mounting styles and pin configurations. Confirm that the selected variant matches the intended frequency band specifications for the target application. Cross-reference the package type with PCB layout requirements to guarantee proper physical integration and electrical connectivity during assembly processes.

Antennas RF Selection Notes

Select this component when a low-profile ceramic patch antenna is required for GPS and Galileo reception. Ensure the design accommodates the specified 12x12mm footprint and 4mm height constraints. Verify that the system impedance matches the antenna characteristics for optimal power transfer. Consider the surface mount requirement for automated assembly workflows and check environmental ratings if operating in harsh conditions.

Antennas RF Part Context

This part belongs to the GP series of miniaturized GNSS antennas from Taoglas Limited. It is engineered for space-constrained applications requiring reliable satellite signal acquisition. The series typically includes variants with different mounting options and connector types to suit diverse industrial and consumer electronics designs.

Antennas RF Replacement Considerations

Consult official substitution lists for equivalent ceramic patch antennas with matching 1.575GHz frequency ranges and similar form factors. Verify that any alternative part maintains compatible VSWR and gain specifications for the intended navigation application.
