GPDF6010.A

Antennas RF Overview

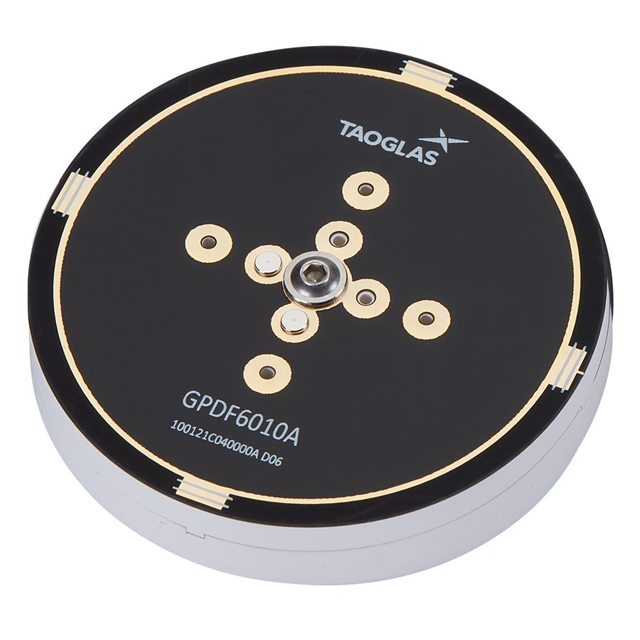

The GPDF6010.A is a passive GNSS ceramic patch antenna designed for surface mount applications. It supports multiple frequency bands including GPS, GLONASS, Galileo, BeiDou, and QZSS. The device features a stacked architecture to achieve high precision across all correction signals. Key frequencies include 1.17645 GHz, 1.2276 GHz, 1.561 GHz, 1.57542 GHz, and 1.602 GHz. It offers linear polarization with a gain ranging from 3 dBi to 4 dBi depending on the band. The unit has a maximum height of 10.50 mm and utilizes pin termination.

Antennas RF Feature Summary

• Multi-band coverage supporting GPS, GLONASS, Galileo, BeiDou, and QZSS systems
• Stacked ceramic patch architecture for enhanced location accuracy
• Surface mount design suitable for embedded integration

Antennas RF Applications

• High-precision navigation systems
• Position tracking devices
• GNSS receiver modules

Antennas RF Procurement Notes

Verify the specific revision suffix and manufacturing date code upon ordering. Confirm that the pin configuration matches the target PCB footprint. Ensure compliance with RoHS and REACH regulations as required by the end product specifications. Check for any recent design changes in the official datasheet before finalizing procurement.

Antennas RF Selection Notes

Select this component when multi-constellation support is required for improved satellite visibility. The stacked design provides superior performance compared to single-layer alternatives. Consider the physical dimensions and mounting style during the mechanical layout phase. Evaluate the gain requirements against the specific application environment.

Antennas RF Part Context

This part belongs to Taoglas' RF antenna portfolio, specifically within the GNSS category. It serves as a critical component for satellite-based positioning solutions. The manufacturer specializes in embedded antennas for mobile and industrial electronics. This model represents a high-precision solution for complex signal environments.

Antennas RF Replacement Considerations

HP5010A is listed as a manufacturer-recommended alternative. Verify electrical compatibility and mechanical fit before substitution. Ensure the replacement meets all original frequency and gain specifications.
