GPSMB502

Antennas RF Overview

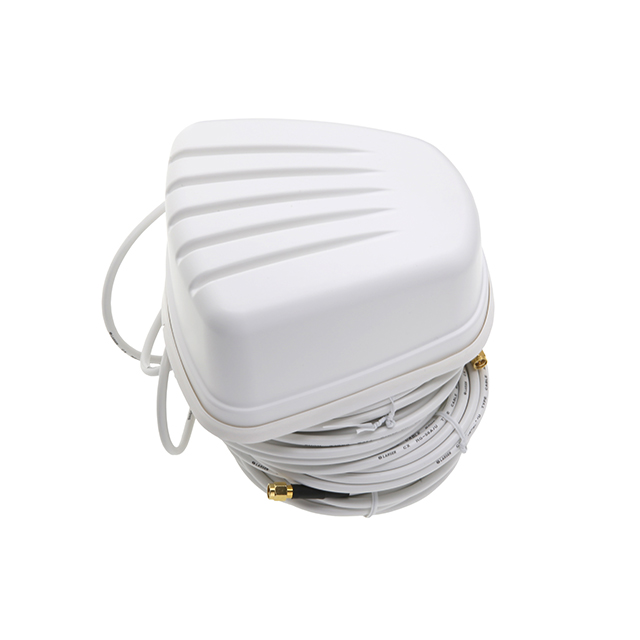

The GPSMB502 is a vehicle-mounted active MIMO antenna module by Pulse Electronics, designed for multi-protocol connectivity. It supports cellular standards including NB-IoT and LTE, alongside GNSS systems such as GPS and GLONASS, and WiFi (802.11). The unit features a dome mechanical form with magnetic mounting and an RP-SMA male connector. Operating frequencies span from 698 MHz to 5.925 GHz, covering seven bands. Key electrical parameters include a 5 dBi gain, 50 Ohms impedance, and VSWR values of 1.4, 1.5, and 1.6. Physical dimensions are 76 mm in height, 164.48 mm in length, and 6.28 mm in width. It operates within a temperature range of -40°C to +85°C and holds an IP67 rating.

Antennas RF Feature Summary

• Supports Multi-Input Multi-Output (MIMO) architecture for enhanced signal reliability in LTE and GNSS applications.
• Integrates multiple wireless protocols including Cellular (NB-IoT, LTE), GNSS (GPS, GLONASS), and WiFi into a single compact module.
• Features a robust dome design with magnetic mounting for secure installation on vehicle surfaces.
• Provides environmental protection with an IP67 rating suitable for harsh outdoor conditions.

Antennas RF Applications

• Fleet Management Systems
• Telematics Solutions
• Location Based Services
• First Responder Vehicles (Ambulance, Fire, Police)
• Utility Vehicle Communications

Antennas RF Procurement Notes

Verify the specific datasheet version and ordering suffixes to confirm connector type and cable length specifications. Ensure compatibility with the target vehicle's mounting surface and RF interface requirements. Cross-reference the frequency bands supported against local regulatory standards for cellular and GNSS operations. Confirm environmental ratings meet operational site conditions.

Antennas RF Selection Notes

Select this model when a unified solution for cellular data, GNSS positioning, and WiFi connectivity is required for mobile assets. The MIMO capability is critical for maintaining throughput in areas with signal interference or multipath fading. Consider the magnetic mount for non-permanent installations and the IP67 rating for exposure to dust and water. Evaluate the physical dimensions against available space on the vehicle roof or dashboard.

Antennas RF Part Context

This component belongs to Pulse Electronics' portfolio of vehicle antennas and multiprotocol modules. It is part of a series designed for telematics and IoT applications requiring high reliability. The GPSMB502 complements other vehicle-mounted solutions by integrating diverse radio technologies into a single form factor, simplifying system integration for manufacturers of connected vehicles and specialized transport equipment.

Antennas RF Replacement Considerations

The GPSMB501 is a related variant within the same product family. Verify if the specific band support or connector configuration of the alternative matches the system requirements before substitution.

Antennas RF FAQ

What is the maximum operating temperature for the GPSMB502?

The maximum operating temperature is +85°C.

Does the GPSMB502 support both GNSS and Cellular protocols simultaneously?

Yes, it is a multi-protocol antenna supporting GNSS (GPS, GLONASS), Cellular (NB-IoT, LTE), and WiFi.
