GRS.01.A.024KSSX1

Antennas RF Overview

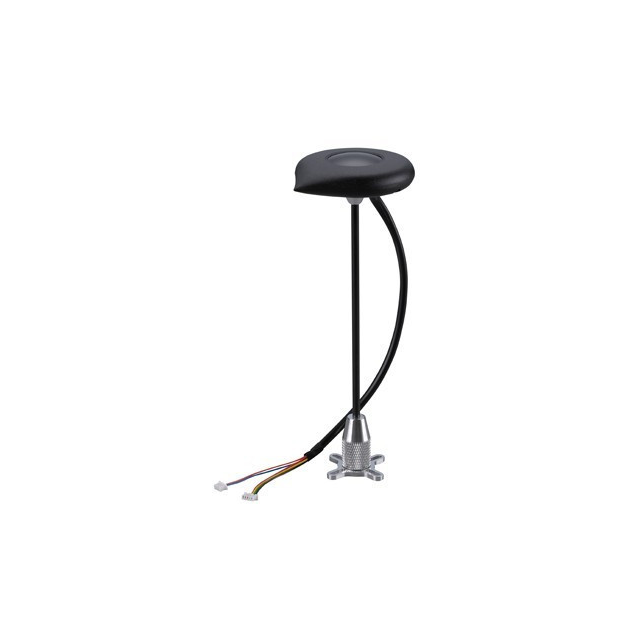

The GRS.01.A.024KSSX1 is a Maverick GPS/GNSS/Beidou Smart Antenna Receiver System by Taoglas Limited. It integrates a u-blox M8 platform for high sensitivity and low power consumption. The system supports multiple satellite constellations including GPS, GLONASS, GALILEO, Beidou, and QZSS. It features APM 2.x compatibility and provides positioning accuracy within 1°-2°. The unit includes a 240mm UART cable with a 1.25mm wafer connector, designed for seamless integration into navigation and tracking applications.

Antennas RF Feature Summary

• Supports GPS, GLONASS, GALILEO, Beidou, and QZSS constellations
• Integrates u-blox M8 platform for enhanced sensitivity
• Compatible with APM 2.x systems
• Includes 240mm UART cable with 1.25mm wafer connector

Antennas RF Applications

• Navigation systems
• Position tracking devices
• APM 2.x compatible platforms

Antennas RF Procurement Notes

Verify component authenticity through authorized Taoglas distributors or official channels. Confirm the presence of the u-blox M8 platform and correct cable specifications during inspection. Ensure compliance with RoHS3 standards as documented in the manufacturer's environmental classification. Cross-reference part numbers to avoid confusion with discontinued GRS.01 series variants.

Antennas RF Selection Notes

Select this model for applications requiring multi-constellation GNSS support with integrated receiver capabilities. The u-blox M8 platform ensures reliable performance in diverse environments. Consider the included cable length and connector type for system integration. Verify APM 2.x compatibility if used in specific autopilot or control architectures.

Antennas RF Part Context

This component belongs to the Maverick series of smart antenna receiver systems. It combines RF front-end technology with baseband processing in a compact form factor. The product line targets professional navigation and tracking markets requiring high accuracy and multi-band support.

Antennas RF Replacement Considerations

Taoglas has issued an End of Life (EOL) notification for the GRS.01 series due to lack of demand. No direct substitute part numbers are publicly confirmed in the provided documentation. Evaluate alternative GNSS receiver modules from other manufacturers for continued production needs.
