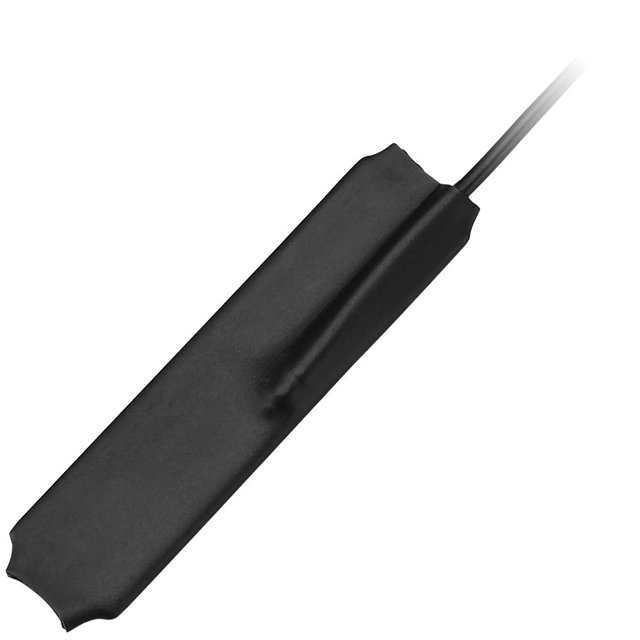

GSA.8830.A.201111 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GSA.8830 3G/2G CELLULAR ADHESIVE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GSA.8830.A.201111
- Description：GSA.8830 3G/2G CELLULAR ADHESIVE
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz
- Frequency Range：824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz
- Antenna Type：Flat Bar
- Number of Bands：5
- VSWR：-
- Return Loss：-8dB, -9dB, -10dB
- Gain：-0.23dBi, 0.77dBi, 0.67dBi, 0.98dBi, 0.73dBi
- Features：Cable - 2m
- Termination：SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.181" (4.60mm)
- Applications：3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA
- Power - Max：-
Antennas RF datasheet and documents for GSA.8830.A.201111
Antennas RF Overview
The GSA.8830.A.201111 is a multi-band cellular I-Bar antenna manufactured by Taoglas Limited, designed for external mounting applications. It operates across five frequency bands: 896 MHz, 960 MHz, 1.88 GHz, 1.99 GHz, and 2.17 GHz. The component features linear polarization and utilizes an SMA male connector for interface. It employs an adhesive mount style and is encased in thin heat-shrink wrapping for environmental protection.
Antennas RF Feature Summary
- Multi-band support for 3G, 2G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, and WCDMA standards
- I-Bar form factor with adhesive mounting for secure attachment
- Linear polarization optimized for cellular communication links
Antennas RF Applications
- Mobile phone navigation systems
- Position tracking devices
- IoT gateways requiring cellular connectivity
Antennas RF Procurement Notes
Verify the specific suffix configuration against the manufacturer's current datasheet to ensure compatibility with required frequency bands and connector types. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Cross-reference the SMA male connector specifications with the host device interface to prevent mechanical mismatch during installation.
Antennas RF Selection Notes
Select this model when a compact, externally mounted cellular solution is required for devices supporting legacy and modern 2G/3G standards. The adhesive mounting option simplifies integration into non-metallic enclosures. Ensure the operating temperature range of -40°C meets the environmental requirements of the target deployment scenario.
Antennas RF Part Context
This part belongs to the GSA.8830 series of cellular antennas from Taoglas Limited. The series focuses on providing reliable RF performance for mobile and IoT applications through various mounting options including adhesive and magnetic bases. The GSA.8830.A.201111 specifically addresses the need for multi-band coverage in a slim profile.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's portfolio for direct replacements or consult distributor cross-reference lists for equivalent multi-band I-Bar antennas with SMA connectors.
