Product Detailed Parameters
- Description：IGBT MODULE 100A SINGLE 600V LOW
- Series：-
- Mfr：SanRex Corporation
- Package：Tube
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：1.5V @ 15V, 100A
- Input：DC
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：SOT-227-4, miniBLOC
- Supplier Device Package：SOT-227
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：500 W
- Current - Collector Cutoff (Max)：100 µA
- Input Capacitance (Cies) @ Vce：6.69 nF @ 10 V
Download product information
Overview

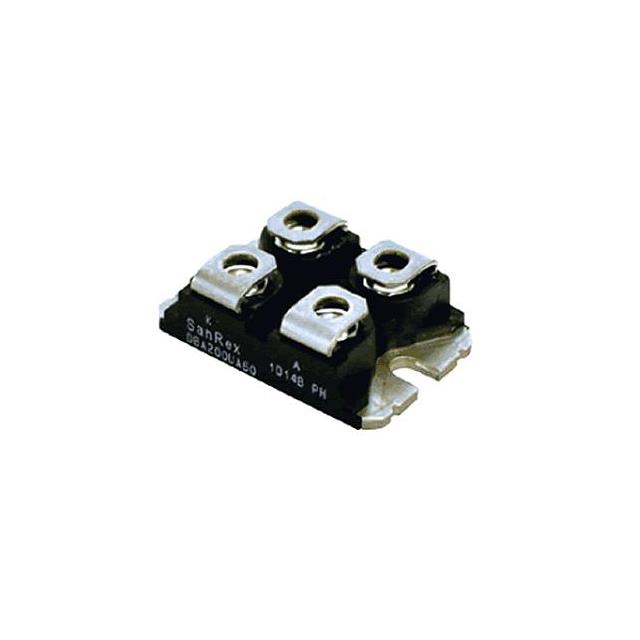

The SanRex GSA100AA60 is a single IGBT module rated for 600V collector-emitter voltage and 100A continuous collector current. It features a low saturation voltage of 1.21V typical at 125°C, ensuring efficient power handling. The device utilizes a fully isolated package with an isolation voltage of 2500V AC RMS and is compatible with the SOT-227 footprint. Key electrical parameters include a gate-emitter threshold voltage of 6.0V typical, total power dissipation of 500W at 25°C case temperature, and a junction temperature range from -40°C to +150°C.
Feature Summary
- Low Vce(sat) characteristic for improved efficiency
- Fully isolated package providing high insulation strength
- SOT-227 standard package compatibility for compact equipment design
Applications
- AC/DC TIG Welders
- UPS bypass AC switches
- Pulse reverse rectifiers for surface treatment
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer's datasheet specifications against the physical markings on the module. Confirm that the part number matches exactly and check for UL approval file E76102 compliance. Ensure proper handling procedures are followed during installation to maintain the integrity of the isolated package and thermal interface.
Selection Notes
Select this module when a 600V rating and 100A continuous current capacity are required in a compact form factor. Consider the low saturation voltage for applications prioritizing conduction loss reduction. Verify that the system can accommodate the specified thermal resistance values and mounting torque requirements for reliable long-term operation under varying load conditions.
Part Context
This component belongs to the SanRex GSA series of IGBT modules. The series is characterized by its use of field-stop technology to achieve low saturation voltages while maintaining robust switching performance. These modules are designed for industrial power electronics applications requiring high reliability and compact packaging solutions.
Replacement Considerations
Direct replacements must match the 600V/100A rating and SOT-227 package dimensions. Verify equivalent electrical characteristics such as Vce(sat), switching losses, and thermal resistance before substitution. Consult official manufacturer documentation for approved alternative part numbers within the same product family or industry-standard equivalents.
