GSGC1060S

Single Diodes Overview

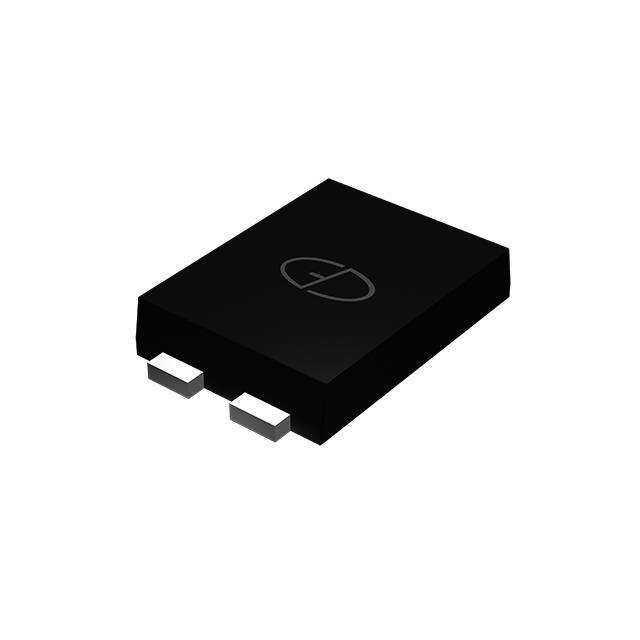

The GSGC1060S is a surface mount Schottky rectifier manufactured by Good-Ark Semiconductor. It features a maximum repetitive peak reverse voltage of 60V and a maximum average forward rectified current of 10A. The device utilizes a TO-277 package with a typical height of 1.1mm. Electrical characteristics include a maximum forward drop voltage of 0.50V at 10A and a maximum reverse leakage current of 30mA at 125°C. Thermal resistance from junction to ambient is 40°C/W, while junction-to-case is 15°C/W. The component supports high temperature soldering at 260°C for 10 seconds and operates within a junction temperature range of -55°C to +150°C.

Single Diodes Feature Summary

• Schottky barrier diode construction providing low forward voltage drop
• Very low profile design with typical height of 1.1 mm
• Guaranteed high temperature soldering capability at 260°C for 10 seconds
• Halogen-free composition according to IEC 61249-2-21 definition

Single Diodes Applications

• Fast switching in RF modules
• Lighting systems
• Cellular phones and portable devices
• Power supplies
• Consumer applications

Single Diodes Procurement Notes

Verify the specific ordering suffix and carrier quantity when sourcing. Confirm that the requested units match the tape and reel packaging format specified in the order information. Ensure compliance with moisture sensitivity level 1 requirements per J-STD-020 during storage and handling. Check for halogen-free certification status if required by environmental regulations. Validate marking codes against the official datasheet specifications.

Single Diodes Selection Notes

Select this component for circuits requiring high current handling up to 10A with low forward voltage drop. Consider the TO-277 package dimensions for PCB layout constraints. Evaluate thermal management needs based on the junction-to-ambient thermal resistance value. Ensure operating temperatures remain within the specified -55°C to +150°C range. Verify compatibility with fast switching frequencies in RF and power supply designs.

Single Diodes Part Context

This part belongs to the surface mount Schottky rectifier category from Good-Ark Semiconductor. It is designed for applications demanding high efficiency and low heat generation. The TO-277 package provides a compact solution for modern electronic devices. The device is suitable for consumer electronics and portable equipment where space and performance are critical factors.

Single Diodes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer guidelines for cross-referencing alternatives.
