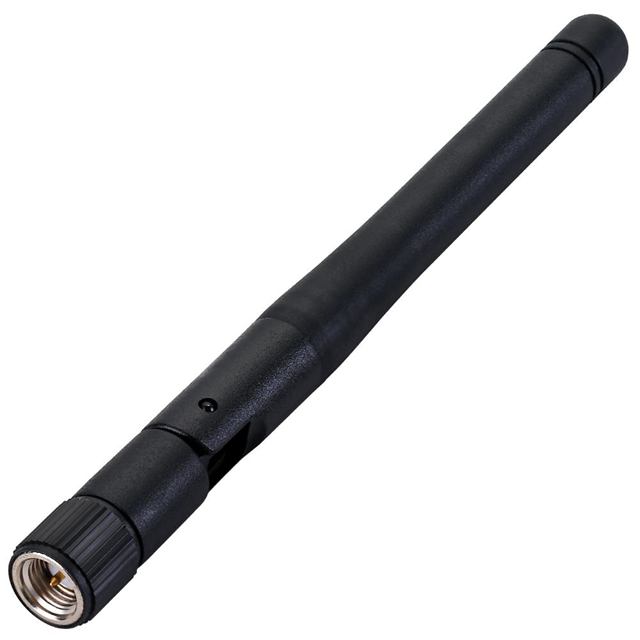

GW.15.2113 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 2.4GHZ WHIP TILT SMA MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.15.2113
- Description：RF ANT 2.4GHZ WHIP TILT SMA MALE
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：1.8
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.272" (108.50mm)
- Applications：Bluetooth, WLAN
- Power - Max：1 W
Antennas RF datasheet and documents for GW.15.2113
Antennas RF Overview
The GW.15.2113 is a passive whip antenna manufactured by Taoglas Limited, designed for operation within the 2.4 GHz to 2.5 GHz frequency range. It features an SMA male connector and supports vertical polarization with a 50 Ohm impedance. The unit provides a gain of 6 dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 1.8. This component is engineered for applications requiring reliable RF transmission in wireless communication systems.
Antennas RF Feature Summary
- Vertical polarization design optimized for consistent signal coverage
- Integrated SMA male connector for direct interface compatibility
- High gain performance ensuring extended operational range
Antennas RF Applications
- Wireless Local Area Network (WLAN) infrastructure
- Bluetooth device connectivity modules
- Industrial IoT sensor networks
Antennas RF Procurement Notes
Verify that the specific part number matches the required SMA male configuration and frequency specifications. Confirm mechanical fitment for the intended mounting environment. Ensure compliance with relevant electromagnetic interference standards for the target application region before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when a fixed-gain solution is preferred over omnidirectional alternatives. The vertical polarization aligns with standard dipole orientations. Consider the physical dimensions and connector type against existing system interfaces to ensure seamless integration without additional adapters.
Antennas RF Part Context
This component belongs to the GW.15 series of dipole antennas from Taoglas. It serves as a dedicated RF solution for short-range wireless protocols. The design prioritizes structural simplicity and electrical stability for embedded or panel-mounted deployments.
Antennas RF Replacement Considerations
Cross-reference with other Taoglas GW.15 variants for connector differences. Verify equivalent gain and VSWR metrics if substituting with non-Taoglas brands to maintain system performance integrity.
