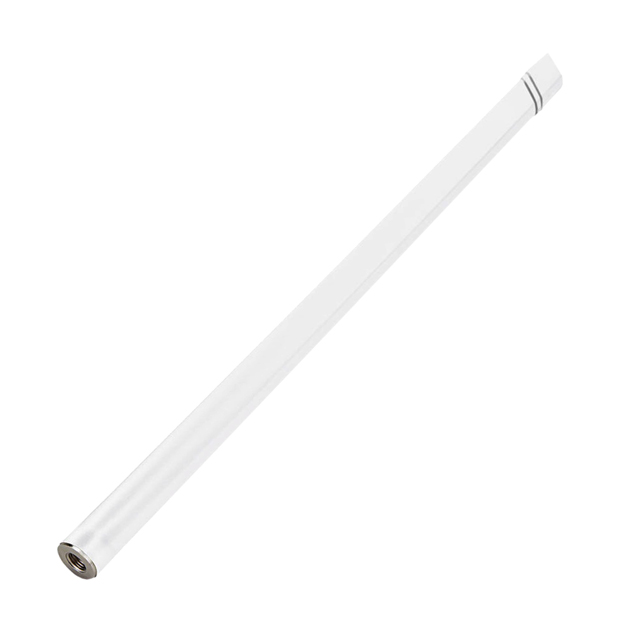

GW.22.5151W is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is 5DBI 2.4GHZ DIPOLE ANTENNA RP-SM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for GW.22.5151W
- Description：5DBI 2.4GHZ DIPOLE ANTENNA RP-SM
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz, 2.45GHz, 2.5GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：3
- VSWR：-
- Return Loss：-10dB
- Gain：4.64dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：9.252" (235.00mm)
- Applications：Bluetooth, Wi-Fi, WLAN, Zigbee™
- Power - Max：10 W
Antennas RF datasheet and documents for GW.22.5151W
Antennas RF Overview
The GW.22.5151W is a 2.4GHz rubber duck dipole antenna manufactured by Taoglas Limited, designed for wireless communication applications including Bluetooth, Wi-Fi, WLAN, Zigbee, and Thread. It provides up to 5dBi gain at 2.4GHz frequencies. The antenna features an RP-SMA male connector mount type and is housed in a flexible, IK07-rated TPEE enclosure with IP67 ingress protection rating, suitable for both indoor and outdoor use.
Antennas RF Feature Summary
- Provides up to 5dBi gain for reliable wireless communication
- IP67 rated enclosure for indoor and outdoor durability
- Flexible IK07-rated TPEE housing construction
Antennas RF Applications
- Bluetooth Low Energy (BLE)
- Wi-Fi and WLAN systems
- Zigbee networks
- Thread protocol applications
Antennas RF Procurement Notes
Verify the specific suffix 'W' against the manufacturer's official datasheet to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with RP-SMA female connectors on the host device. Check RoHS compliance status and environmental ratings before integration into final products.
Antennas RF Selection Notes
Select this model when high gain is required for 2.4GHz ISM band applications. The IP67 rating makes it suitable for harsh environments where weather resistance is critical. Consider the physical size and mounting requirements due to its whip-style design compared to compact chip antennas.
Antennas RF Part Context
This component belongs to the GW.22 series of dipole antennas from Taoglas Limited. The series is engineered for robust performance in various wireless standards operating within the 2.4GHz frequency range. The 'W' suffix typically denotes specific packaging or minor variant details as per manufacturer documentation.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's antenna builder tool for direct replacements based on specific gain and connector requirements.
