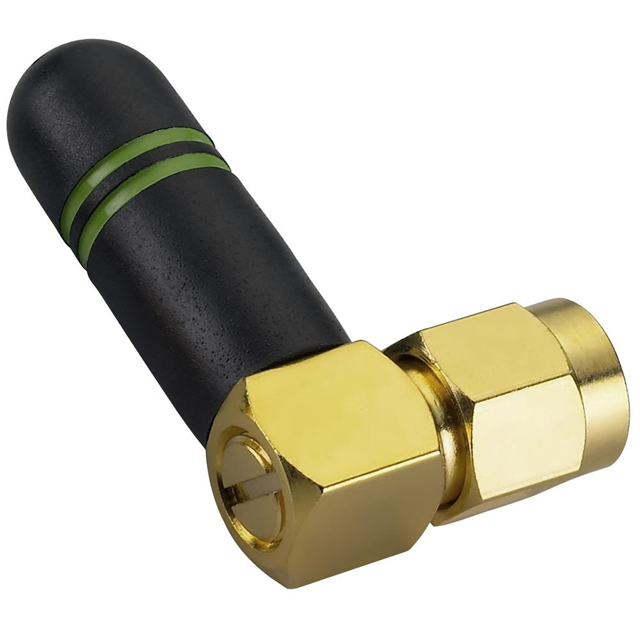

GW.26.0112

$9.03

Description：RF ANT 2.4GHZ WHIP RA SMA MALE
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:c9efc12b6a42 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GW.26.0112 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 2.4GHZ WHIP RA SMA MALE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for GW.26.0112

Description：RF ANT 2.4GHZ WHIP RA SMA MALE
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Right Angle
Number of Bands：1
VSWR：-
Return Loss：-
Gain：1.8dBi
Features：-
Termination：SMA Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：1.122" (28.50mm)
Applications：Bluetooth, WLAN
Power - Max：1 W

Antennas RF datasheet and documents for GW.26.0112

GW.26.0112

Antennas RF Overview

The GW.26.0112 is a 2.4 GHz mini screw-mount monopole antenna manufactured by Taoglas Limited. It features an SMA male connector and operates within the 2.4 GHz to 2.5 GHz frequency range. The component has a bandwidth of 1000 MHz, a nominal impedance of 50 Ohms, and a power rating of 1 W. Its physical length is 28.5 mm. This part is currently listed as obsolete.

Antennas RF Feature Summary

Compact screw-mount design for space-constrained applications
Monopole configuration optimized for 2.4 GHz ISM band
SMA male connector interface for direct cable attachment

Antennas RF Applications

Bluetooth device integration
Wireless LAN (WLAN) connectivity
Zigbee sensor networks

Antennas RF Procurement Notes

This component is officially marked as obsolete by the manufacturer. Availability is restricted or non-existent through standard distribution channels. Verify end-of-life status with suppliers before design finalization. No current production runs are confirmed.

Antennas RF Selection Notes

Select this model only if legacy compatibility with existing 2.4 GHz designs is required. Consider alternative active antennas from the same manufacturer series for new projects due to obsolescence. Ensure mechanical mounting supports the specified screw-mount style.

Antennas RF Part Context

Part of the GW.26 family of 2.4 GHz antennas. Shares similar RF characteristics with models like GW.26.0111 but differs in mounting mechanism. Designed for indoor wireless communication protocols requiring compact form factors.
