GW.59.3153

Antennas RF Overview

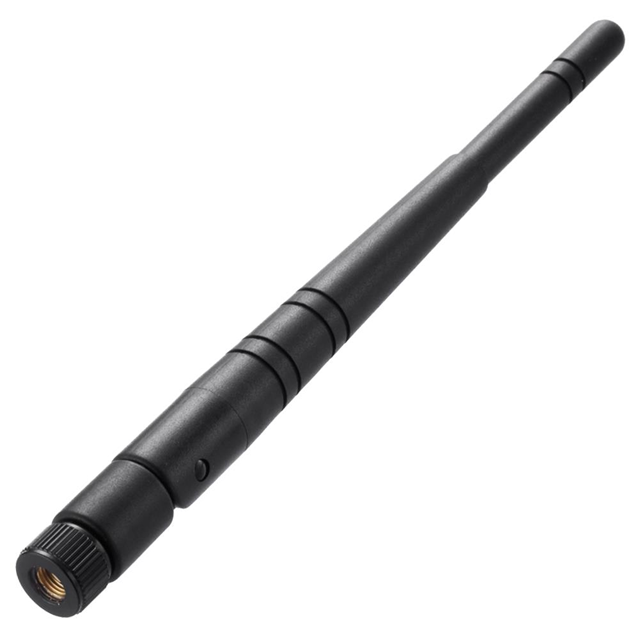

The GW.59.3153 is a dual-band whip antenna manufactured by Taoglas Limited, designed for Bluetooth and WLAN applications. It operates across the 2.4GHz ~ 2.5GHz and 5.15GHz ~ 5.85GHz frequency ranges. The component provides gains of 2.37dBi at 2.4GHz and 2.93dBi at 5.5GHz. It features an RP-SMA male connector interface and utilizes connector mounting installation. The unit has a maximum height of 6.142 inches (156.00mm) and offers IP65 ingress protection.

Antennas RF Feature Summary

• Dual-band operation supporting both 2.4GHz and 5.5GHz wireless standards
• Integrated tilt mechanism for flexible orientation adjustment
• IP65 rated enclosure ensuring environmental sealing

Antennas RF Applications

• Bluetooth devices
• WLAN networks

Antennas RF Procurement Notes

Verify the specific RP-SMA male connector type against system requirements. Confirm that the 156.00mm height fits within the mechanical assembly constraints. Ensure the IP65 rating meets the operational environment specifications. Check RoHS compliance status if required by project regulations. Validate the frequency range alignment with target network protocols.

Antennas RF Selection Notes

Select this model when dual-band performance in the 2.4GHz and 5.5GHz bands is required. The tilt feature allows for optimized signal directionality without complex mounting hardware. The connector interface simplifies integration into existing RF systems. Consider the physical dimensions to ensure adequate clearance around the antenna element.

Antennas RF Part Context

This part belongs to the GW.59 series of antennas from Taoglas Limited. The series focuses on versatile RF solutions for wireless connectivity. The GW.59.3153 specifically addresses the need for robust, adjustable antennas in compact form factors suitable for consumer electronics and industrial IoT devices requiring reliable short-range communication.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available.
