GWLA.01

Antennas RF Overview

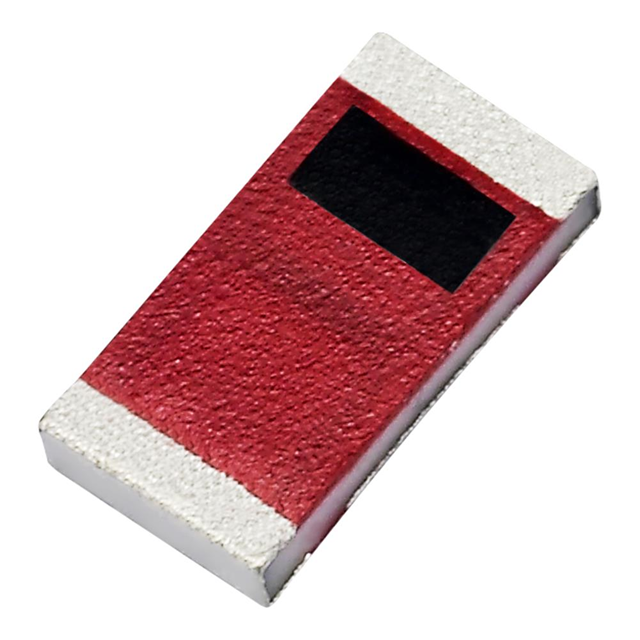

The GWLA.01 is a passive ceramic loop antenna designed for embedded applications, supporting GPS L1/Galileo and Bluetooth/Wi-Fi/Zigbee at 2.4GHz. It features linear polarization with a 50 Ohm impedance and operates within a frequency range up to 2.5 GHz. The component measures 3.2 x 1.6 x 0.5 mm and functions between -40°C and +85°C. It utilizes SMD/SMT surface mount termination for PCB integration.

Antennas RF Feature Summary

• Integrates dual-band functionality for GNSS navigation and 2.4GHz wireless protocols in a single compact footprint.
• Utilizes a ceramic substrate loop mechanical style suitable for space-constrained embedded designs.

Antennas RF Applications

• GPS and Galileo navigation systems
• Bluetooth connectivity modules
• Wi-Fi and WLAN devices
• Zigbee IoT sensor nodes

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required regulatory standards and packaging configurations. Confirm moisture sensitivity levels and reflow soldering profiles prior to assembly to maintain component integrity during production.

Antennas RF Selection Notes

Select this component when a combined GNSS and 2.4GHz solution is required for embedded hardware. Evaluate the 3.2x1.6mm form factor against available board real estate. Ensure the host circuit supports the specified 50 Ohm impedance matching requirements for optimal signal performance across both frequency bands.

Antennas RF Part Context

This part belongs to Taoglas' portfolio of RF antennas, specifically targeting compact consumer electronics and IoT devices. It addresses the need for multi-protocol support by combining positioning capabilities with short-range wireless communication in a unified surface-mount package.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents if this specific model becomes unavailable.

Antennas RF FAQ

What is the physical size of the GWLA.01 antenna?

The dimensions are 3.2 mm in length, 1.6 mm in width, and 0.5 mm in height.

Does the GWLA.01 support both GPS and 2.4GHz protocols simultaneously?

Yes, it is a dual-band antenna designed to handle GPS/L1/Galileo signals alongside Bluetooth, Wi-Fi, and Zigbee frequencies.
