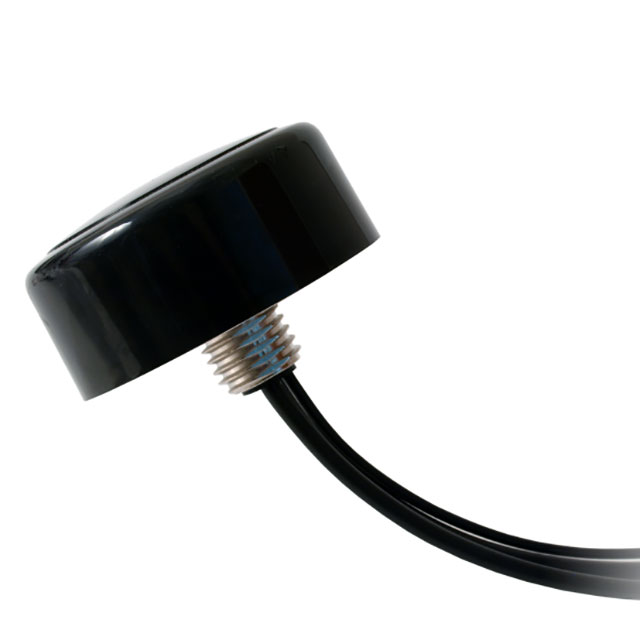

H1S600000006AU is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is 3-IN-1 COMBO EXTERNAL ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H1S600000006AU
- Description：3-IN-1 COMBO EXTERNAL ANTENNA
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Bulk
- RF Family/Standard：Cellular, Navigation, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz
- Frequency Range：698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
- Antenna Type：Module
- Number of Bands：14
- VSWR：2, 4.5, 3, 3.5, 2.5
- Return Loss：-4dB, -6dB, -5.5dB, -10dB, -8dB
- Gain：1.06dBi, 2.8dBi, 1.21dBi, 1.21dBi, 1.44dBi, 8.21dBi, 8.72dBi, 8.72dBi, 8.14dBi, 7.27dBi
- Features：Cable - 300mm
- Termination：SMA Male
- Ingress Protection：IPX7
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：1.492" (37.90mm)
- Applications：5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi
- Power - Max：-
Antennas RF datasheet and documents for H1S600000006AU
Antennas RF Overview
The H1S600000006AU is a 3-in-1 combo external antenna manufactured by Unictron Technologies Corporation. It integrates functionality for multiple wireless communication bands into a single unit, designed for applications requiring combined signal reception capabilities. The component serves as an external interface solution for devices needing simultaneous support across distinct frequency ranges.
Antennas RF Feature Summary
- Integrates three distinct wireless communication functions within a single physical unit
- Designed as an external antenna solution for enhanced connectivity
- Supports multi-band operation to consolidate multiple radio requirements
Antennas RF Applications
- Multi-standard wireless communication devices
- IoT gateways requiring combined connectivity protocols
- Mobile terminals with integrated navigation and communication needs
Antennas RF Procurement Notes
Verify the specific band combinations supported by this variant against your system requirements. Confirm mechanical mounting specifications and connector types compatible with your host device. Ensure environmental ratings meet operational conditions. Cross-reference the official datasheet for impedance and gain characteristics relevant to your design.
Antennas RF Selection Notes
Select this component when a single external antenna must handle multiple wireless standards simultaneously. Evaluate space constraints favoring integrated solutions over separate antennas. Consider performance trade-offs inherent in shared-element designs versus dedicated single-band units. Verify compatibility with existing RF front-end architectures.
Antennas RF Part Context
Unictron Technologies Corporation specializes in high-performance wireless communication components. This product belongs to their portfolio of antenna modules and elements designed for modern connectivity challenges. The company focuses on providing compact, efficient solutions for diverse wireless applications.
Antennas RF Replacement Considerations
No public substitute part numbers are documented for this specific model. Consult Unictron Technologies Corporation directly for potential alternatives or updated series replacements that offer similar multi-band integration capabilities.
