H2MA003D100100

$32.27

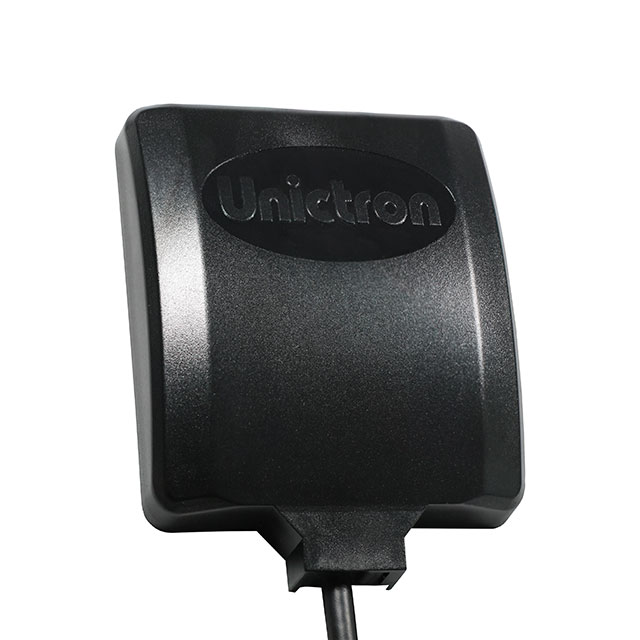

Description：GPS L1+L5 EXTERNAL ANTENNA
Series：-
Mfr：Unictron Technologies Corporation
Package：Bulk

SKU:6ddec80ae404 Category: RF Antennas Brand: Unictron Technologies Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

H2MA003D100100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is GPS L1+L5 EXTERNAL ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for H2MA003D100100

Description：GPS L1+L5 EXTERNAL ANTENNA
Series：-
Mfr：Unictron Technologies Corporation
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.176GHz, 1.575GHz
Frequency Range：-
Antenna Type：Module
Number of Bands：2
VSWR：2
Return Loss：-
Gain：2.3dBi, 3dBi
Features：Cable - 2m, LNA
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.669" (17.00mm)
Applications：GPS
Power - Max：-

Antennas RF datasheet and documents for H2MA003D100100

H2MA003D100100

Antennas RF Overview

The H2MA003D100100 is an external GPS antenna module manufactured by Unictron Technologies Corporation. It supports dual-band L1 and L5 frequencies, specifically operating at 1.575 GHz and 1.176 GHz. The component is designed for high-precision positioning applications requiring robust signal reception across multiple navigation satellite systems.

Antennas RF Feature Summary

Dual-band L1/L5 frequency support
External antenna module design
High-precision positioning capability

Antennas RF Applications

GNSS receivers
High-precision positioning systems
Navigation modules

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against your system interface before ordering. Confirm that the L1 and L5 band specifications align with your target satellite constellation. Ensure environmental ratings meet operational conditions. Cross-reference the manufacturer datasheet for mechanical dimensions to validate integration space.

Antennas RF Selection Notes

Select this model when dual-band L1/L5 performance is required for improved accuracy and multipath mitigation. Consider the external form factor if internal space constraints prevent integrated solutions. Evaluate the need for specific mounting configurations and cable routing options inherent to external modules.

Antennas RF Part Context

This part belongs to Unictron's external antenna portfolio, distinct from their surface-mount ceramic or chip antennas. It targets applications demanding higher gain and isolation compared to internal variants, suitable for automotive, surveying, and industrial GNSS equipment where signal integrity is critical.
