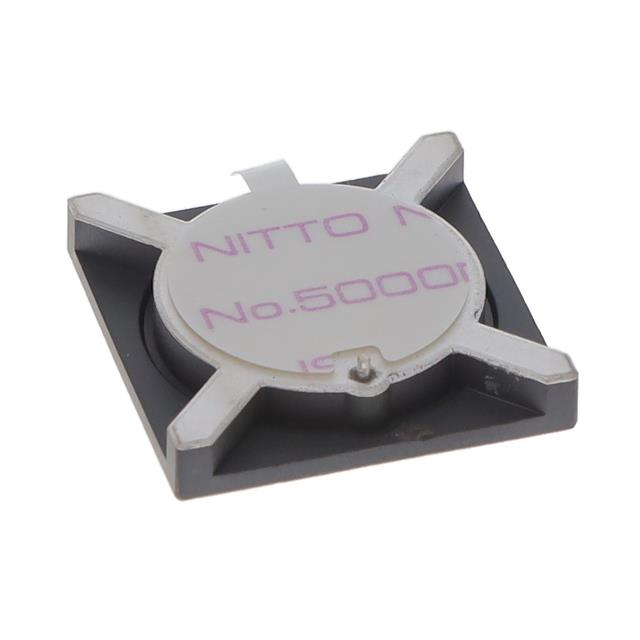

H2P13ABB110100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is PB25D8 (25X25X4.5MM); GPS(L1+L5). Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2P13ABB110100
- Description：PB25D8 (25X25X4.5MM); GPS(L1+L5)
- Series：PB25D8
- Mfr：Unictron Technologies Corporation
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.575GHz
- Frequency Range：-
- Antenna Type：Flat Patch
- Number of Bands：2
- VSWR：-
- Return Loss：-10dB
- Gain：3dBi, 5dBi
- Features：LNA
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.183" (4.66mm)
- Applications：Beidou, Galileo, GNSS, GPS, QZSS
- Power - Max：-
Antennas RF datasheet and documents for H2P13ABB110100
Antennas RF Overview
The H2P13ABB110100 is a flat patch RF antenna manufactured by Unictron Technologies Corporation, designed for global navigation satellite systems. It supports multiple frequency bands including GPS, GLONASS, Galileo, BeiDou, and QZSS. The component utilizes a solder and adhesive mounting method for secure surface attachment. This antenna provides wide-band coverage essential for multi-constellation positioning applications in mobile devices and IoT modules.
Antennas RF Feature Summary
- Supports multi-constellation GNSS signals including GPS, GLONASS, Galileo, BeiDou, and QZSS
- Flat patch design with combined solder and adhesive mounting options
- Optimized for compact integration in portable electronics
Antennas RF Applications
- Smartphones and tablets requiring multi-GNSS support
- Wearable fitness trackers and health monitors
- Internet of Things (IoT) location tracking modules
Antennas RF Procurement Notes
Verify the specific datasheet revision to confirm impedance matching requirements and recommended PCB layout dimensions. Ensure that the adhesive backing compatibility matches your target substrate material for reliable mechanical fixation during assembly processes.
Antennas RF Selection Notes
Select this model when multi-constellation reception is required within a low-profile form factor. Compare physical dimensions against available PCB real estate. Evaluate the trade-off between the integrated adhesive solution and pure soldering methods based on thermal management needs.
Antennas RF Part Context
This component belongs to Unictron's GNSS antenna portfolio, which includes various ceramic chip and patch designs. It serves as a specialized solution for applications demanding high sensitivity across diverse satellite constellations without occupying significant vertical space.
Antennas RF Replacement Considerations
Direct substitutes are not explicitly listed in public documentation. Consider other Unictron flat patch models or generic GNSS antennas only if they match the exact footprint and electrical specifications.
