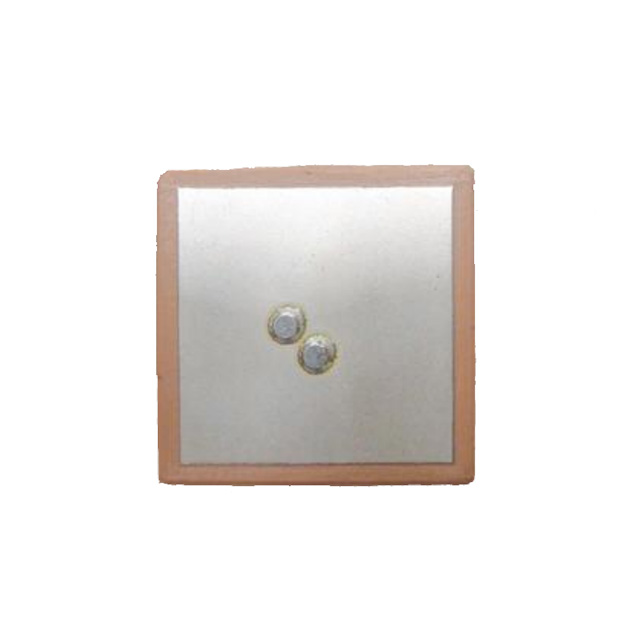

H2P13APAXB0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is GNSS 1560-1606 MHZ ULTRA WIDE BA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2P13APAXB0100
- Description：GNSS 1560-1606 MHZ ULTRA WIDE BA
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tray
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz, 1.561GHz, 1.602GHz
- Frequency Range：1.598GHz ~ 1.606GHz
- Antenna Type：Ceramic Patch
- Number of Bands：3
- VSWR：2
- Return Loss：-
- Gain：1.6dBi, 1.9dBi, 4.2dBi
- Features：-
- Termination：Pin
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.157" (4.00mm)
- Applications：GLONASS, GPS
- Power - Max：-
Antennas RF datasheet and documents for H2P13APAXB0100
Antennas RF Overview
The H2P13APAXB0100 is a ceramic patch RF antenna manufactured by Unictron Technologies Corporation, designed for navigation applications. It supports three frequency bands: GPS at 1.575GHz, GLONASS at 1.561GHz, and a third band at 1.602GHz, with an operational range of 1.598GHz to 1.606GHz. The component features a surface mount pin configuration and offers a gain of 0dBi. It has a maximum height of 53.40mm and utilizes a connector mounting type.
Antennas RF Feature Summary
- Supports multi-band navigation signals including GPS and GLONASS frequencies
- Utilizes ceramic patch construction for durability
- Designed for surface mount pin installation
Antennas RF Applications
- GPS receiver integration
- GLONASS positioning systems
- Navigation device development
Antennas RF Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and electrical tolerances before integration. Ensure the surface mount footprint matches the PCB layout requirements. Confirm that the connector mounting style aligns with the system assembly design. Check RoHS compliance status if required by project specifications.
Antennas RF Selection Notes
Select this component when multi-constellation support for GPS and GLONASS is required in a compact form factor. The ceramic patch design suits environments needing stable performance. Consider the 0dBi gain requirement and surface mount constraints during board layout planning.
Antennas RF Part Context
This part belongs to Unictron's navigation antenna portfolio, focusing on GNSS signal reception. It complements other Unictron antennas like the TA-S13B series which targets Wi-Fi applications, demonstrating the manufacturer's range across different RF standards.
Antennas RF Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Evaluate similar ceramic patch antennas from Unictron or other manufacturers only after verifying exact frequency band alignment and mechanical compatibility.
