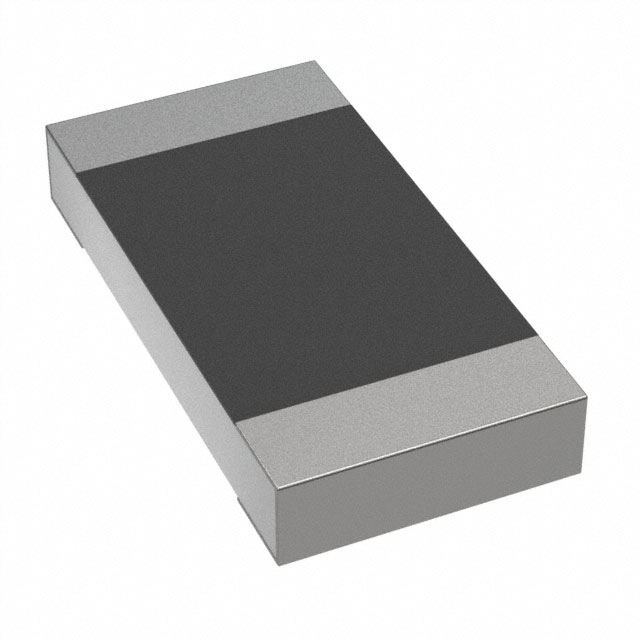

H2U34W1H1Z0400 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is WIFI/BT 2400-2500MHZ TELA CERAMI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2U34W1H1Z0400
- Description：WIFI/BT 2400-2500MHZ TELA CERAMI
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：1.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.020" (0.50mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™
- Power - Max：2 W
Antennas RF datasheet and documents for H2U34W1H1Z0400
Antennas RF Overview
The H2U34W1H1Z0400 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation. It operates within the 2.4GHz to 2.5GHz frequency range, with a center frequency of 2.45GHz. The component provides a gain of 1.5dBi and supports a maximum power of 2 W. It features a Voltage Standing Wave Ratio (VSWR) of 2 and utilizes solder termination for surface mount installation. The antenna has a maximum height of 0.020 inches (0.50mm).
Antennas RF Feature Summary
- Supports multiple wireless standards including Bluetooth, Wi-Fi, Zigbee, and ISM applications.
- Designed for surface mount integration with solder termination.
- Constructed as a compact ceramic chip antenna.
Antennas RF Applications
- Bluetooth devices
- Wi-Fi networks
- Zigbee systems
- ISM band applications
Antennas RF Procurement Notes
Verify the specific ordering suffixes such as TR, CT, or DKR to confirm the required packaging format, whether tape and reel, cut tape, or Digi-Reel. Ensure compatibility with RoHS3 specifications and check the Moisture Sensitivity Level (MSL 2A) requirements for your manufacturing process before procurement.
Antennas RF Selection Notes
Select this component when a low-profile surface mount solution is required for 2.4GHz operations. Consider its 1.5dBi gain and 2W power handling capabilities against system requirements. Verify that the solder termination method aligns with your PCB assembly processes and that the physical dimensions fit the design constraints.
Antennas RF Part Context
This part belongs to the H2U34 series of ceramic chip antennas from Unictron Technologies Corporation. These components are designed for high-volume consumer electronics requiring reliable wireless connectivity in compact form factors. The series supports various wireless protocols operating in the 2.4GHz to 2.5GHz spectrum.
Antennas RF Replacement Considerations
Consult official Unictron documentation for direct substitutes within the H2U34 family. Verify electrical parameters and mechanical footprint compatibility before replacing. Generic cross-references may not match specific performance characteristics or mounting requirements.
