H2U38D1E1B0100

$0.94

Description：UNICTRON CW324S - WIFI / BLUETOO
Series：-
Mfr：Unictron Technologies Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c10af2c5d993 Category: RF Antennas Brand: Unictron Technologies Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

H2U38D1E1B0100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is UNICTRON CW324S - WIFI / BLUETOO. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for H2U38D1E1B0100

Description：UNICTRON CW324S - WIFI / BLUETOO
Series：-
Mfr：Unictron Technologies Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2
Return Loss：-
Gain：1.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.051" (1.30mm)
Applications：Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：2 W

Antennas RF datasheet and documents for H2U38D1E1B0100

H2U38D1E1B0100

Antennas RF Overview

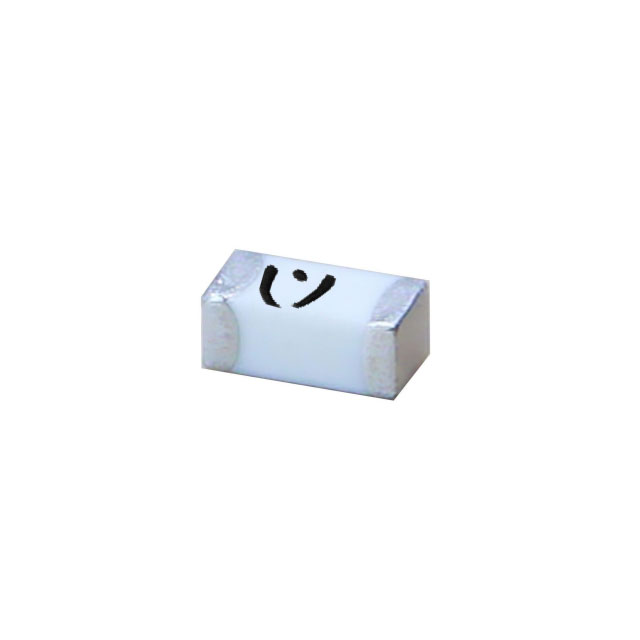

The H2U38D1E1B0100 is a surface-mount chip RF antenna manufactured by Unictron Technologies Corporation. It operates within the 2.4GHz to 2.5GHz frequency range, supporting Bluetooth, ISM, Wi-Fi, and Zigbee protocols. The component features a gain of 1.5dBi and utilizes solder termination for PCB integration.

Antennas RF Feature Summary

Supports multiple wireless standards including Bluetooth, Wi-Fi, and Zigbee
Surface mount package design for automated assembly
Integrated chip antenna structure

Antennas RF Applications

Bluetooth low energy devices
Wi-Fi enabled IoT modules
Zigbee sensor networks

Antennas RF Procurement Notes

Verify the specific datasheet version from Unictron Technologies Corporation to confirm mechanical dimensions and soldering profile requirements. Ensure compatibility with the target PCB layout and impedance matching network before finalizing procurement orders.

Antennas RF Selection Notes

Select this component for applications requiring compact form factor antennas in the 2.4GHz band. Evaluate spatial constraints on the PCB as the physical footprint must accommodate the surface mount package while maintaining adequate clearance from ground planes.

Antennas RF Part Context

This part belongs to Unictron's CW324S series of chip antennas designed for short-range wireless communications. It serves as a passive radiating element integrated directly onto electronic boards for consumer and industrial wireless devices.
