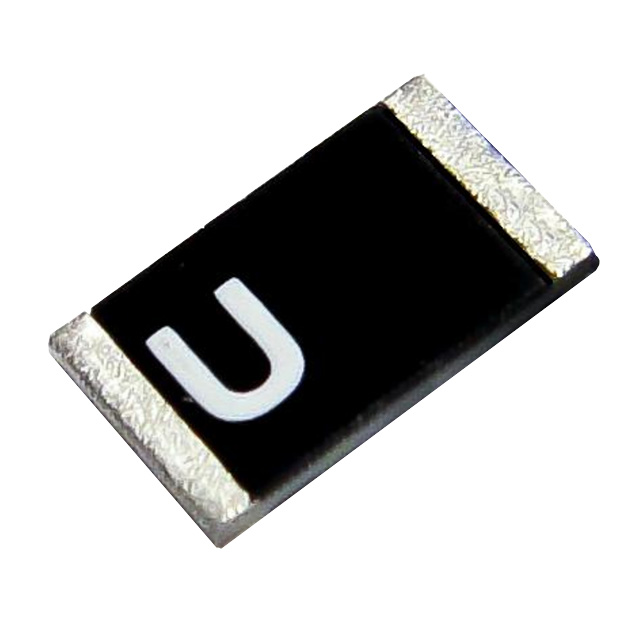

H2U64U1H2B0200 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Unictron Technologies Corporation. Its product description is 868MHZ ISM 863-870MHZ TELA CERAM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for H2U64U1H2B0200
- Description：868MHZ ISM 863-870MHZ TELA CERAM
- Series：-
- Mfr：Unictron Technologies Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：866.5MHz
- Frequency Range：863MHz ~ 870MHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.020" (0.50mm)
- Applications：ISM
- Power - Max：2 W
Antennas RF datasheet and documents for H2U64U1H2B0200
Antennas RF Overview
The H2U64U1H2B0200 is a ceramic chip RF antenna manufactured by Unictron Technologies Corporation, designed for ISM band applications. It operates within the 863MHz to 870MHz frequency range with a center frequency of 866.5MHz. The component provides 0dBi gain and supports a maximum power input of 2W. It features a Voltage Standing Wave Ratio (VSWR) of 2 and utilizes solder termination for surface mount installation. The antenna has a maximum height of 0.020 inches (0.50mm).
Antennas RF Feature Summary
- Utilizes ceramic construction for reliable performance in ISM bands.
- Designed for surface mount soldering on printed circuit boards.
- Supports high power handling up to 2W for robust operation.
Antennas RF Applications
- ISM band wireless communication systems
- Wi-Fi enabled devices operating in UHF ranges
- Industrial, Scientific, and Medical equipment
Antennas RF Procurement Notes
Verify the specific ordering suffix against the manufacturer's datasheet to ensure correct frequency and impedance specifications. Confirm RoHS compliance status and Moisture Sensitivity Level (MSL) ratings prior to assembly. Ensure the selected packaging type matches production line requirements for surface mount technology integration.
Antennas RF Selection Notes
Select this component for designs requiring a low-profile ceramic antenna in the 863-870MHz range. Consider the 0.50mm height constraint for space-limited enclosures. Validate that the 0dBi gain meets system link budget requirements and that the 2W power rating aligns with transmitter output capabilities.
Antennas RF Part Context
This part belongs to the H2U64 series of ceramic chip antennas from Unictron Technologies Corporation. These components are engineered for compact embedded wireless solutions. The series offers various configurations tailored for different ISM and Wi-Fi frequency bands while maintaining consistent physical dimensions and mounting characteristics.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing design layouts before considering alternative models from other manufacturers.
