H2U86D1K1P0100

Antennas RF Overview

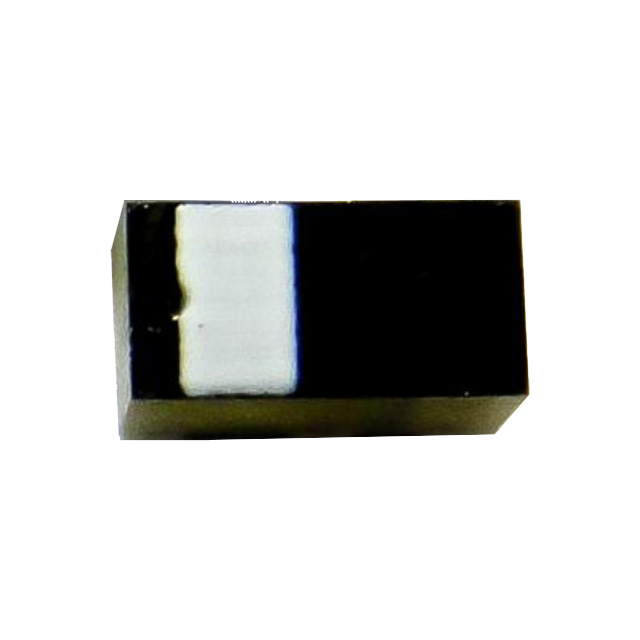

The H2U86D1K1P0100 is a surface-mount chip antenna manufactured by Unictron Technologies Corporation. It operates within the 5.15GHz to 5.85GHz frequency range, supporting IEEE 802.11a/b/g/n/ac Wi-Fi standards. The component features a gain of 2.4dBi and utilizes solder termination for PCB integration. Its physical dimensions include a maximum height of 1.60mm, designed for compact electronic applications requiring reliable wireless connectivity.

Antennas RF Feature Summary

• Supports multiple IEEE 802.11a/b/g/n/ac Wi-Fi protocols
• Surface-mount design with solder termination
• Optimized for compact device integration

Antennas RF Applications

• Wi-Fi routers and access points
• Wireless network interface cards
• IoT devices requiring 5GHz band connectivity

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm impedance matching requirements and RF trace routing guidelines. Ensure the PCB layout adheres to the manufacturer's recommended ground plane specifications to maintain optimal performance. Confirm that the soldering process parameters are compatible with the component's thermal characteristics.

Antennas RF Selection Notes

Select this component when a low-profile solution is required for 5GHz Wi-Fi applications. The 2.4dBi gain provides adequate signal strength for standard indoor environments. Consider the 1.60mm height constraint during mechanical design to ensure clearance within the final enclosure.

Antennas RF Part Context

This part belongs to Unictron's chip antenna portfolio, which includes various models for different frequency bands. The H2U series typically focuses on high-frequency applications such as Wi-Fi and Bluetooth. It is distinct from Unictron's GNSS or cellular antenna lines.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult the manufacturer directly for cross-reference information or equivalent components.
