Product Detailed Parameters
- Description：BRIDGE RECT 1PHASE 1KV 8A HBS
- Series：-
- Mfr：SMC Diode Solutions
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：1 kV
- Current - Average Rectified (Io)：8:00 AM
- Voltage - Forward (Vf) (Max) @ If：1 V @ 8 A
- Current - Reverse Leakage @ Vr：5 µA @ 1000 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount

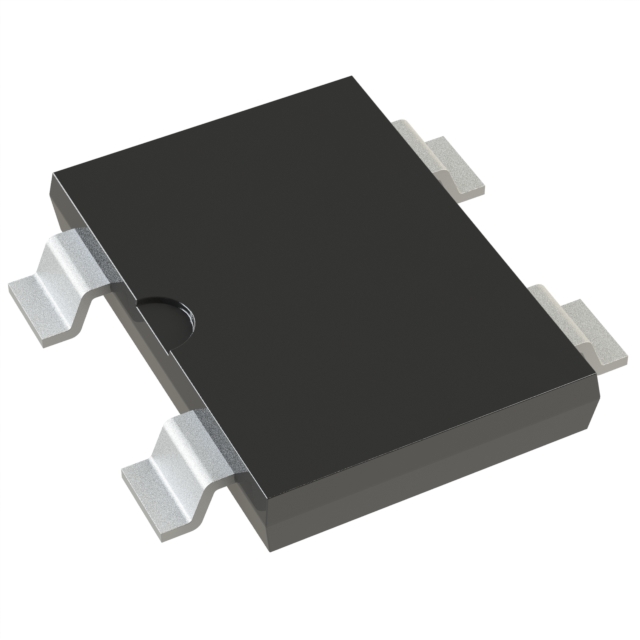

- Package / Case：4-SMD, Gull Wing
- Supplier Device Package：HBS
- Grade：-
- Qualification：-
Download product information
Overview
The HBS810 is a single-phase standard bridge rectifier manufactured by SMC Diode Solutions. It features an average rectified current (Io) of 8 A and a maximum repetitive peak reverse voltage (Vrrm) of 1 kV. The forward voltage drop (Vf) is specified as 1 V at 8 A, with a reverse leakage current of 5 µA at 1000 V. Operating within a junction temperature range of -55°C to 150°C, the device utilizes a surface-mount 4-SMD鸥翼 (HBS) package.
Feature Summary
- Single-phase bridge rectification configuration for AC-to-DC conversion
- Surface-mount HBS package design for automated PCB assembly
- High thermal stability supporting operation up to 150°C junction temperature
Applications
- General-purpose power supply circuits requiring 8 A rectification
- Industrial equipment power stages
- Consumer electronics AC adapter implementations
Procurement Notes
Verify the manufacturer designation on the component marking or datasheet to distinguish between SMC Diode Solutions and Diodes Incorporated variants, as both produce parts with similar electrical specifications. Confirm the specific suffix if ordering from distributors, ensuring the package type matches the required footprint. Check RoHS3 compliance status for environmental regulations.
Selection Notes
Select this component when a surface-mount solution is required for 8 A applications with 1 kV blocking capability. Ensure the PCB layout accommodates the 4-SMD鸥翼 package dimensions. Consider the 1 V forward voltage drop for thermal management calculations in high-current scenarios compared to lower-voltage drop alternatives.
Part Context
The HBS810 belongs to the HBS series of bridge rectifiers, designed for compact surface-mount applications. It serves as a standard replacement for through-hole bridge rectifiers in space-constrained designs. The part is actively produced by SMC Diode Solutions, offering a robust solution for general-purpose rectification tasks.
Replacement Considerations
The HBS810-13 from Diodes Incorporated is listed as a parameter-equivalent substitute. Verify pinout compatibility and exact thermal characteristics before substitution.
