HD1530FX

Single Bipolar Transistors Overview

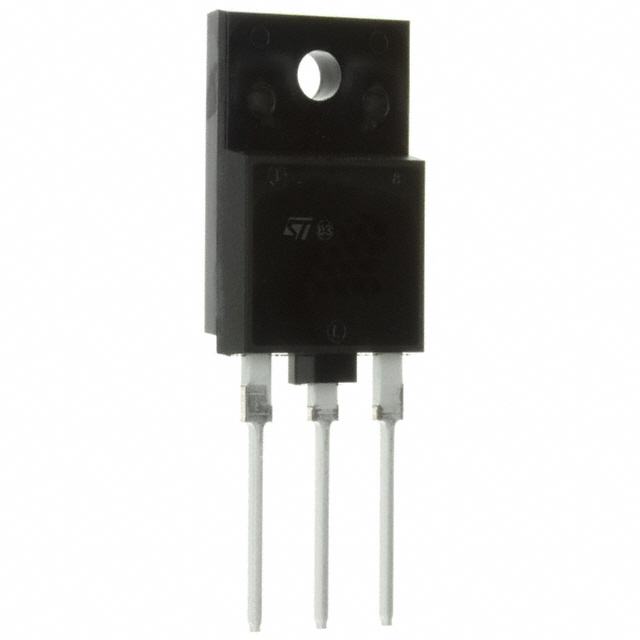

The HD1530FX is a high-voltage NPN power transistor manufactured by STMicroelectronics, designed specifically for high-definition and new super slim CRT displays. It utilizes Diffused Collector Planar technology with the Enhanced High Voltage Structure (EHVS1). This architecture provides improved silicon efficiency for horizontal deflection stages, offering wider optimum drive conditions and stability against operating temperature variations. The device features a fully insulated power package compliant with UL standards.

Single Bipolar Transistors Feature Summary

• Enhanced High Voltage Structure (EHVS1) for improved silicon efficiency
• Low sensitivity to operating temperature variations
• Fully insulated power package compliant with UL standards

Single Bipolar Transistors Applications

• High definition CRT displays
• New super slim CRT displays
• Horizontal deflection stages

Single Bipolar Transistors Procurement Notes

Verify component status as the HD1530FX is listed as obsolete in available records. Confirm availability of alternative sources or last-time buy options if procurement is required. Ensure compatibility with existing design specifications before considering this part for any new implementation.

Single Bipolar Transistors Selection Notes

Select this component only for legacy high-definition CRT display designs requiring specific high-voltage NPN characteristics. Evaluate the EHVS1 technology benefits regarding drive condition stability. Consider obsolescence status when planning long-term production runs or maintenance cycles.

Single Bipolar Transistors Part Context

The HD1530FX belongs to STMicroelectronics' specialized line of power transistors for display applications. It shares technological roots with other models like the HD1750FX and ST1510FX, utilizing similar EHVS1 planar technology. These components target the niche market of CRT display manufacturers needing reliable high-voltage switching solutions.

Single Bipolar Transistors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct replacements may require design modifications or evaluation of newer generation equivalents from STMicroelectronics.
