HEL-KIT-868–6DBI-10M is listed in the Antennas RF range at ChipApex. The manufacturer field lists McGill Microwave Systems. Its product description is HELIUM ANTENNA KIT EU868 6DBI 10. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HEL-KIT-868–6DBI-10M
- Description：HELIUM ANTENNA KIT EU868 6DBI 10
- Series：-
- Mfr：McGill Microwave Systems
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：868MHz
- Frequency Range：-
- Antenna Type：-
- Number of Bands：-
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for HEL-KIT-868–6DBI-10M
Antennas RF Overview

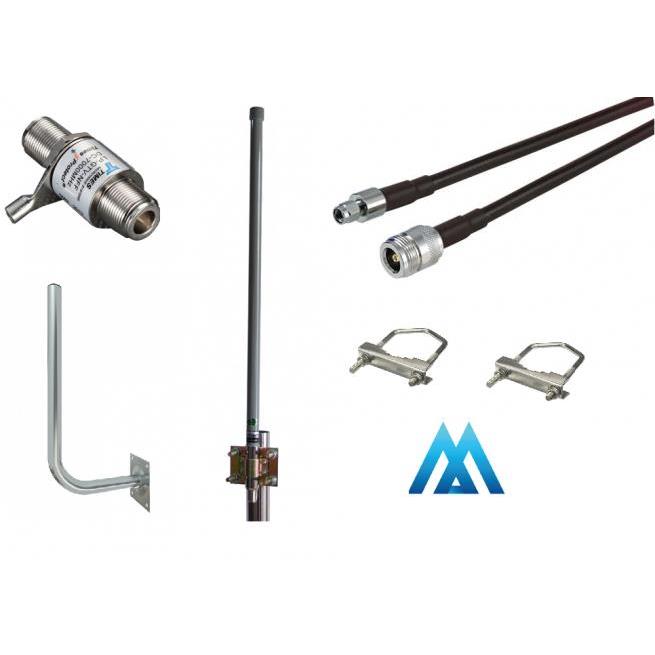

The HEL-KIT-868--6DBI-10M is an RF antenna kit manufactured by McGill Microwave Systems, optimized for EU868 frequency applications. It features a 6dBi gain antenna and includes a zinc-plated heavy-duty wall bracket for mounting. The assembly utilizes ultra-low loss LMR-600 cable with a length of 10 meters, terminated with N Female connectors on both ends to ensure reliable signal transmission.
Antennas RF Feature Summary
- Optimized for EU868 frequency band operations
- Includes zinc-plated heavy-duty wall bracket
- Utilizes ultra-low loss LMR-600 cable assembly
Antennas RF Applications
- EU868 LoRaWAN network installations
- Helium Network hotspots deployment
- Industrial IoT sensor connectivity
Antennas RF Procurement Notes
Verify the specific model suffix corresponds to the required cable length and connector type. Confirm compatibility with existing N Female ports on target devices. Ensure the 10-meter cable specification meets site requirements before purchase.
Antennas RF Selection Notes
Select this kit when EU868 compliance and higher gain are required compared to lower gain alternatives. Consider the 10-meter cable length for remote mounting scenarios. Verify that the heavy-duty bracket suits the installation surface.
Antennas RF Part Context
This part belongs to the HEL-KIT series from McGill Microwave Systems, designed specifically for Helium Network and LoRaWAN infrastructure. It provides a complete solution including antenna, cabling, and mounting hardware for standardized deployments.
Antennas RF Replacement Considerations
Consider HEL-KIT-868--6DBI-8M or HEL-KIT-868--6DBI-1M if shorter cable lengths are needed. For different gain requirements, evaluate models with 3dBi specifications.
