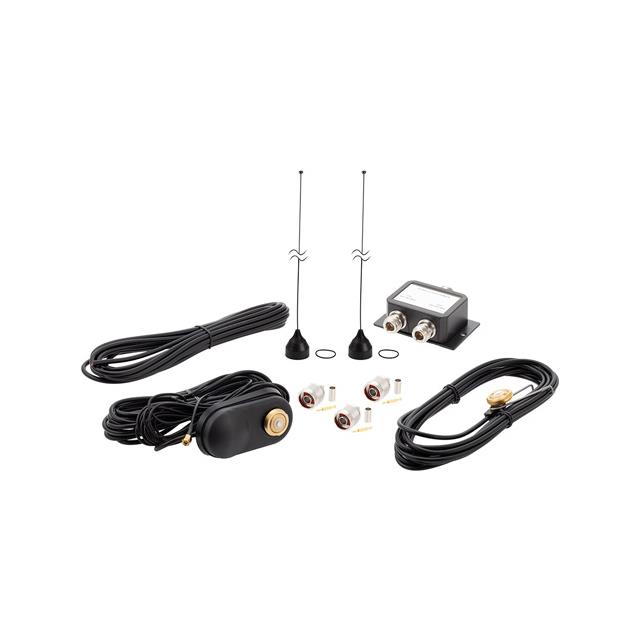

HG10382DU-GPS is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT KIT 2 DBI DUPLEXED 108-174/3. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG10382DU-GPS
- Description：ANT KIT 2 DBI DUPLEXED 108-174/3
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), VHF (f < 300MHz)
- Frequency (Center/Band)：140MHz, 450MHz, 808MHz, 1.575GHz
- Frequency Range：100MHz ~ 180MHz, 380MHz ~ 520MHz, 746MHz ~ 870MHz, 1.572GHz ~ 1.578GHz
- Antenna Type：Whip, Straight
- Number of Bands：4
- VSWR：1.6, 2
- Return Loss：-
- Gain：2dBi, 2dBi, 2dBi, 30dBi
- Features：Cable - 5.182m, Filter
- Termination：NMO, N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：3.270" (83.06mm)
- Applications：General Purpose
- Power - Max：150 W
Antennas RF datasheet and documents for HG10382DU-GPS
Antennas RF Overview
The HG10382DU-GPS is a dual-band duplexed antenna kit manufactured by L-com, designed for mobile communication applications. It integrates VHF and UHF transmission capabilities with GPS reception functionality into a single unit. The system operates within the frequency ranges of 108-174 MHz and 380-870 MHz, providing a gain of 2 dBi. The assembly includes a whip antenna with a cable length of 5.182 meters. Mounting is facilitated via an NMO base with an N-type male connector termination. The physical height of the antenna is limited to 3.270 inches (83.06 mm), ensuring compatibility with standard vehicle roof mounts.
Antennas RF Feature Summary
- Integrates VHF/UHF duplexed communication with GPS reception in a single compact unit
- Utilizes NMO mounting base with N-type male connector for secure installation
- Includes extended 5.182-meter cable for flexible routing in mobile environments
Antennas RF Applications
- Multipoint mobile communications for service vehicles
- Emergency response vehicle radio systems
- Fleet management two-way radio installations
Antennas RF Procurement Notes
Verify that the receiving equipment supports both the specified VHF/UHF duplex frequencies and the integrated GPS band. Confirm that the NMO mount interface matches the vehicle roof preparation. Ensure the cable length meets the specific routing requirements of the installation site without requiring additional extensions.
Antennas RF Selection Notes
Select this kit when a combined solution for voice communication and satellite positioning is required on mobile platforms. Consider the 2 dBi gain specification for line-of-sight performance needs. Evaluate the 5.182-meter cable length against the distance between the mounting point and the radio transceiver location to avoid signal loss or excess slack.
Antennas RF Part Context
This component belongs to L-com's mobile antenna portfolio, specifically engineered for vehicular deployment. It addresses the need for consolidated RF hardware in space-constrained mobile environments. The design prioritizes durability and ease of installation for professional radio operators.
Antennas RF Replacement Considerations
Direct substitutes must match the 108-174/380-870 MHz frequency bands and include GPS functionality. Verify identical NMO mounting and N-type male connector specifications to ensure mechanical compatibility.
