HG172710U-PRO

Antennas RF Overview

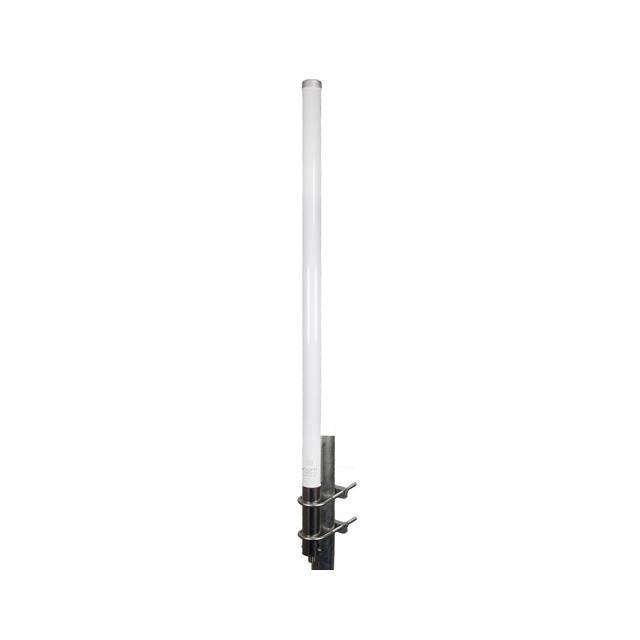

The L-com HG172710U-PRO is an outdoor omnidirectional RF antenna designed for cellular networks. It operates within a frequency range of 1710 to 2700 MHz, supporting LTE and 5G applications. The component features a nominal gain of 10 dBi and maintains a 50-ohm impedance. It utilizes a straight N-type female connector for interface connectivity. The antenna employs a fiberglass radome construction suitable for bracket mounting in external environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for cellular signal distribution
• Fiberglass radome housing engineered for outdoor environmental durability
• Straight N-type female connector interface for standard cable integration

Antennas RF Applications

• LTE network infrastructure deployment
• 5G cellular signal broadcasting
• Outdoor wireless communication systems

Antennas RF Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm current technical specifications. Ensure compatibility with existing N-type connectors and mounting hardware prior to acquisition. Cross-reference frequency requirements with local regulatory standards for cellular bands.

Antennas RF Selection Notes

Select this model when high-gain omnidirectional coverage is required for LTE or 5G deployments. The 10 dBi gain specification supports extended range applications compared to lower gain variants. Confirm that the N-type female interface aligns with the connected transmission line hardware.

Antennas RF Part Context

This component belongs to the L-com PRO Series of RF antennas. The series includes various models differentiated by gain levels and physical dimensions. The HG172710U-PRO represents the higher gain variant within the 1710-2700 MHz operational band, distinct from lower gain counterparts like the HG172706U-PRO.

Antennas RF Replacement Considerations

The HG172706U-PRO serves as a verified substitute within the same product family, offering identical frequency coverage but with reduced gain specifications.
