HG1727S4X6518-4F-R

Antennas RF Overview

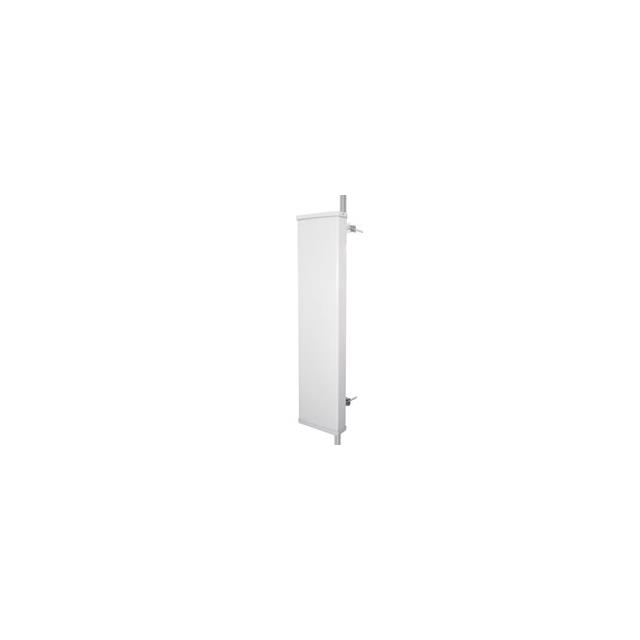

The L-com HG1727S4X6518-4F-R is a multi-band Remote Electrical Tilt (RET) sector antenna designed for mobile network infrastructure. It operates within the 1710 to 2690 MHz frequency range and provides an 18 dBi gain. The unit features a 65-degree horizontal beamwidth and a 45-degree slant polarization. It utilizes four 4.3-10 female connectors with low Passive Intermodulation (PIM) characteristics. The antenna supports electrical tilt adjustment ranging from 2 to 12 degrees, enabling optimized coverage control for LTE and 5G deployments.

Antennas RF Feature Summary

• Multi-band RET sector design for dynamic coverage optimization
• Low PIM 4.3-10 female connector interface
• 65-degree horizontal beamwidth with 45-degree slant polarization
• Electrical tilt adjustment capability between 2 and 12 degrees

Antennas RF Applications

• LTE base station sector coverage
• 5G network deployment
• Public safety communications

Antennas RF Procurement Notes

Verify that the specific part number matches the required RET specifications and connector type. Confirm the manufacturer's standard lead time of 12 weeks during planning. Ensure compatibility with existing tower infrastructure and cabling systems before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when high gain and precise electrical tilt control are required for dense urban or rural macro cell sites. The 4.3-10 connector system ensures reliable signal integrity. Consider the 65-degree sector width for balanced cell overlap and interference management in multi-sector configurations.

Antennas RF Part Context

This component belongs to the L-com HG1727SX series of sector antennas. It is engineered specifically for outdoor base station applications requiring robust performance across multiple cellular bands. The design integrates mechanical durability with advanced RF capabilities for long-term field reliability.

Antennas RF Replacement Considerations

The HG1727S6X6518-4F-R is a related variant within the same product family. Verify specific technical requirements against datasheet specifications before substituting components to ensure functional equivalence.

Antennas RF FAQ

What is the electrical tilt range for this antenna?

The antenna supports remote electrical tilt adjustment ranging from 2 to 12 degrees.

What connector type does this model use?

It utilizes four 4.3-10 female connectors designed for low passive intermodulation performance.
