HG1912SY-NF

Antennas RF Overview

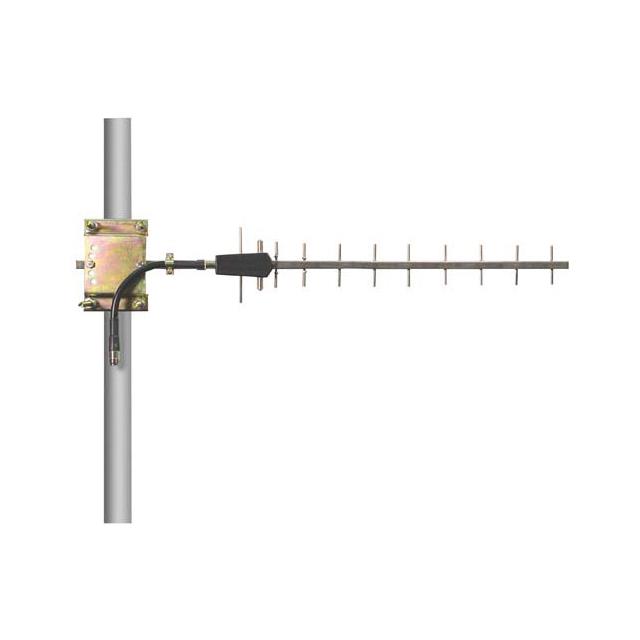

The HG1912SY-NF is a stainless steel Yagi antenna designed for the 1.8 GHz to 1.9 GHz frequency range, specifically targeting PCS and cellular applications. It provides a gain of 12 dBi with a 38-degree beamwidth. The unit features DC short lightning protection and supports pole or wall mounting. It utilizes an N-type female connector and operates within a temperature range of -55°C to 85°C.

Antennas RF Feature Summary

• Stainless steel construction for all-weather durability
• Integrated DC short lightning protection
• Directional Yagi design with 38-degree beamwidth

Antennas RF Applications

• PCS wireless systems
• Cellular communication networks
• Point-to-point microwave links

Antennas RF Procurement Notes

Verify that the specific order matches the HG1912SY-NF designation to ensure correct 1.8–1.9 GHz band coverage. Confirm the requirement for N-type female connectors and stainless steel housing. Check datasheet specifications for mechanical dimensions and mounting hardware compatibility before finalizing procurement.

Antennas RF Selection Notes

Select this model when directional gain is required for PCS or cellular bands. The 12 dBi gain and narrow 38-degree beamwidth suit long-range point-to-point links. Ensure the installation environment supports the stainless steel construction and allows for proper alignment of the directional pattern.

Antennas RF Part Context

This component belongs to L-com's HG series of RF antennas. It is part of a lineup offering various gain levels and frequency ranges for wireless infrastructure. The HG1912SY-NF specifically addresses needs for high-gain directional transmission in the lower UHF/PCS spectrum.

Antennas RF Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify compatibility with existing mounting brackets and connector types if considering alternative models from other manufacturers.
