HG1922EG-1-NF

Antennas RF Overview

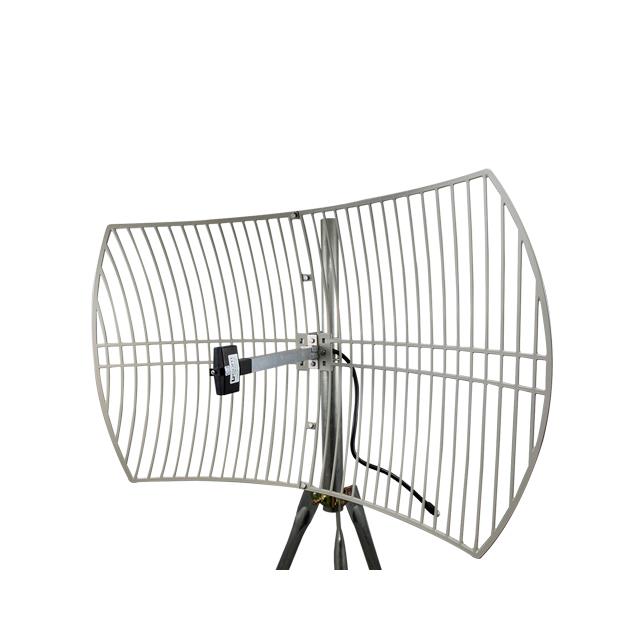

The L-com HG1922EG-1-NF is a high-performance, lightweight reflector grid antenna designed for long-range directional point-to-point systems. It operates within the 1920 MHz to 2170 MHz frequency range and provides a gain of 20 to 22 dBi. The antenna supports both horizontal and vertical polarization with a 13° vertical beamwidth. It features an N-type female connector, a 50-ohm input impedance, and a VSWR of 1.5. Constructed from die-cast material with UV-resistant powder coating, it offers durability and minimal wind loading.

Antennas RF Feature Summary

• Lightweight open grid design minimizes wind loading while maintaining structural integrity
• UV-resistant powder coating ensures long-term outdoor durability
• Supports dual polarization for flexible system configuration
• High-gain reflector geometry optimizes signal directionality

Antennas RF Applications

• Long-range directional point-to-point wireless links
• Microwave backhaul connections
• Fixed wireless access networks
• Industrial IoT communication bridges

Antennas RF Procurement Notes

Verify that the specific application requires the 1920-2170 MHz band and 20-22 dBi gain profile. Confirm compatibility with existing N-type connectors and 50-ohm system impedance. Ensure mounting infrastructure supports pole or wall installation methods. Check environmental requirements against the UV-resistant coating specifications for outdoor deployment.

Antennas RF Selection Notes

Select this model when high directivity and long-range performance are critical. The 13° vertical beamwidth suits focused point-to-point links rather than omnidirectional coverage. Consider the lightweight grid structure for installations where wind load is a primary concern. Verify that the operating frequency aligns with the target regulatory bands for the intended region.

Antennas RF Part Context

This component belongs to L-com's HG series of RF antennas, specifically engineered for microwave and wireless communication applications. The HG1922EG-1-NF variant focuses on the 1.9 GHz ISM band, providing a balance between gain and physical size. It complements other L-com solutions by offering a durable, low-profile alternative to solid dish antennas.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers: None identified in available documentation.
