HG2358-18XP-090-2NF

$413.74

Description：2300-2700/5150-5850MHZ, 16/18 DB
Series：HG
Mfr：L-com
Package：Bag

SKU:3bf3798f6ceb Category: RF Antennas Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HG2358-18XP-090-2NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is 2300-2700/5150-5850MHZ, 16/18 DB. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for HG2358-18XP-090-2NF

Description：2300-2700/5150-5850MHZ, 16/18 DB
Series：HG
Mfr：L-com
Package：Bag
RF Family/Standard：Cellular, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.5GHz, 5.5GHz
Frequency Range：2.3GHz ~ 2.7GHz, 5.15GHz ~ 5.85GHz
Antenna Type：Sector
Number of Bands：2
VSWR：2
Return Loss：-
Gain：16dBi, 18dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：N Type Female (2)
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：3.400" (86.36mm)
Applications：802.16ax, IoT, OFDMA, Wi-Fi, WLAN
Power - Max：100 W

Antennas RF datasheet and documents for HG2358-18XP-090-2NF

HG2358-18XP-090-2NF

Antennas RF Overview

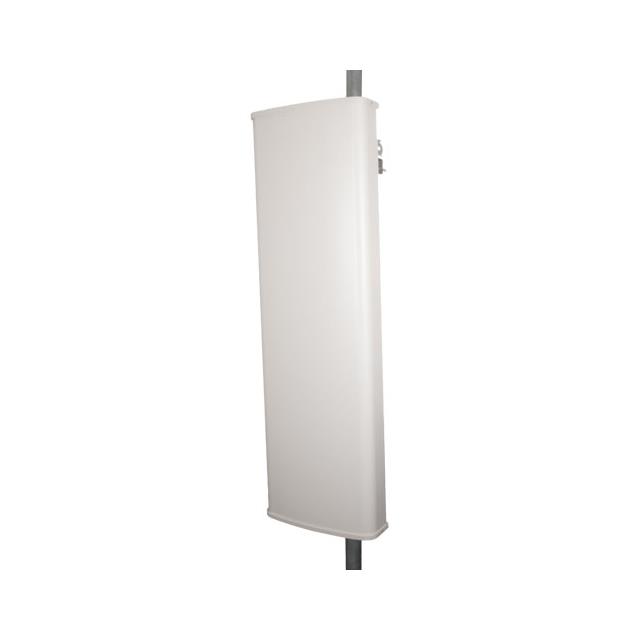

The HG2358-18XP-090-2NF is a dual-band MIMO sector antenna designed for Wi-Fi 6 and Wi-Fi 6e applications. It operates across the 2300-2700 MHz and 5150-5850 MHz frequency ranges, supporting unlicensed bands including 6 GHz. The unit provides gains of 16 dBi and 18 dBi for its respective bands. Featuring a 90-degree beamwidth, it utilizes N-type female connectors and supports 2x2 MIMO configurations. The antenna handles a maximum input power of 100 watts and includes universal radio brackets for mounting.

Antennas RF Feature Summary

Supports Wi-Fi 6 and Wi-Fi 6e standards with OFDMA capabilities
Dual-band operation covering 2.3-2.7 GHz and 5.1-5.85 GHz frequencies
Equipped with N-type female connectors for reliable connectivity
Includes universal radio brackets for flexible installation

Antennas RF Applications

Wi-Fi 6 WLAN sector coverage
IoT connectivity infrastructure
802.16ax network deployments

Antennas RF Procurement Notes

Verify that the specific part number matches the required gain specifications of 16/18 dBi and the 90-degree beamwidth configuration. Confirm compatibility with N-type female interfaces and ensure the environment supports the 100-watt maximum input power rating. Check for inclusion of universal radio brackets in the package to guarantee proper mounting hardware availability.

Antennas RF Selection Notes

Select this model for high-density wireless environments requiring dual-band support up to 6 GHz. It is suitable for applications needing 2x2 MIMO performance and wide sector coverage. Ensure the deployment area aligns with the 90-degree horizontal beamwidth requirements. Verify that the connector type matches existing cabling infrastructure before procurement.

Antennas RF Part Context

This component belongs to L-com's HG series of sector antennas, which are engineered for robust data transmission in wireless local area networks. The series supports modern Wi-Fi standards and offers various beamwidth options to suit different coverage needs. These antennas are designed for outdoor or indoor sectorized installations requiring high reliability.
