HG2364-14DP-065-8NF

Antennas RF Overview

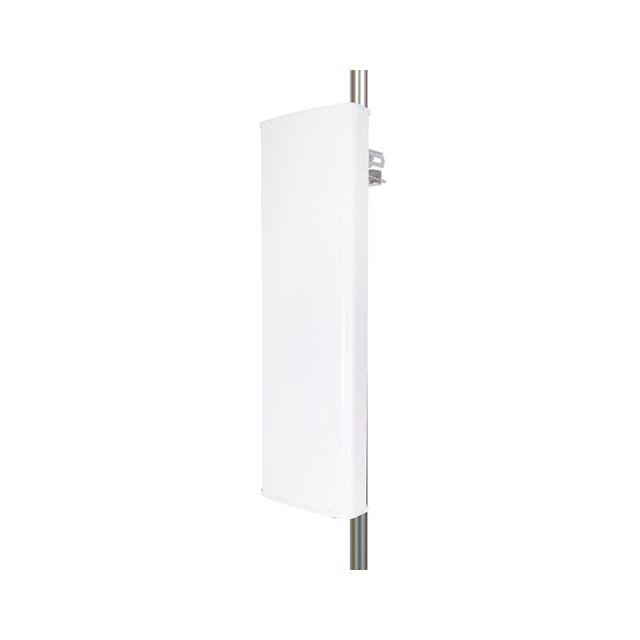

The L-com HG2364-14DP-065-8NF is an 8-port dual-band sector antenna designed for wireless infrastructure. It operates across two frequency ranges: 2300 MHz to 2700 MHz and 4900 MHz to 6400 MHz. The device provides a gain of 14 dBi in the lower band and 17 dBi in the upper band. It features a 65-degree horizontal and vertical beamwidth with dual polarization. The unit includes eight Type N female connectors, supporting 2x2 or 4x4 MIMO configurations. It is engineered to withstand wind speeds up to 135 mph.

Antennas RF Feature Summary

• Dual-band operation covering 2300–2700 MHz and 4900–6400 MHz frequencies
• Eight Type N female connectors enabling flexible MIMO configurations
• High-strength powder-coated mounting brackets for durability

Antennas RF Applications

• Wireless Internet Service Provider (WISP) networks
• IoT and IIoT connectivity solutions
• 4G LTE and 5G band deployments

Antennas RF Procurement Notes

Verify the specific part number against official L-com documentation to ensure compatibility with required frequency bands and connector types. Confirm that the eight-port configuration aligns with system design requirements. Check environmental specifications for installation sites requiring resistance to high wind loads. Ensure all technical parameters match project specifications before finalizing procurement decisions.

Antennas RF Selection Notes

Select this model when dual-band coverage is required for both sub-3 GHz and mid-band frequencies. The eight-port design supports advanced MIMO setups for increased capacity. Consider the 65-degree beamwidth for targeted sector coverage. Evaluate the mechanical strength for outdoor installations exposed to harsh weather conditions. Compare gain requirements between the two operational bands to ensure adequate signal performance.

Antennas RF Part Context

This component belongs to L-com's HG series of sector antennas. It is part of a family of products designed for wireless infrastructure applications. The series includes various port counts and beamwidth options. This specific model emphasizes dual-band capability and high port density for modern wireless networks.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing systems before considering alternatives.
