HG2400RDR-RSP

Antennas RF Overview

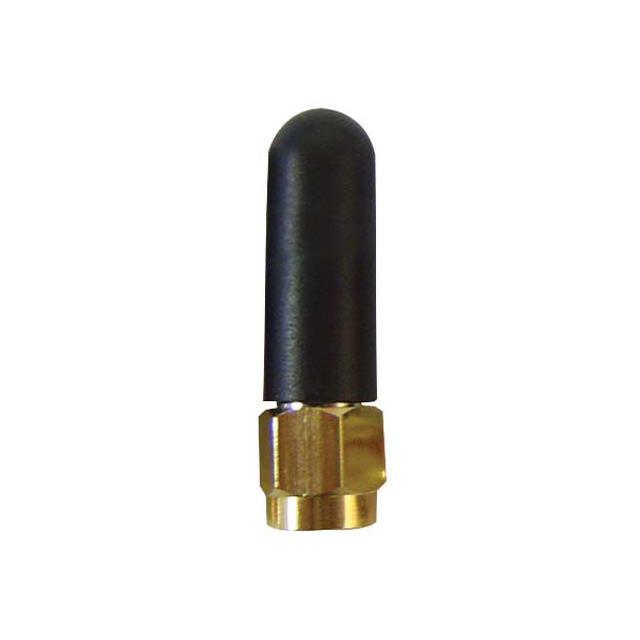

The HG2400RDR-RSP is a 2.4 GHz omnidirectional antenna manufactured by L-com, designed for ISM band applications including Wi-Fi and Bluetooth. It features a 0 dBi gain rating and operates within the 2.4 to 2.5 GHz frequency range. The component utilizes a rigid rubber duck structure with an RP-SMA male connector for mounting. It maintains a nominal 50 Ohm impedance and supports V.S.W.R. less than 2.

Antennas RF Feature Summary

• Omnidirectional radiation pattern suitable for general wireless coverage
• Rigid rubber duck construction providing mechanical stability
• Integrated RP-SMA male connector for direct interface

Antennas RF Applications

• Wi-Fi WLAN modules
• Bluetooth transceivers
• ISM band communication devices

Antennas RF Procurement Notes

Verify the specific connector gender and polarity against system requirements, as RP-SMA configurations vary. Confirm that the 0 dBi gain specification aligns with link budget calculations. Ensure the operating frequency range of 2.4 to 2.5 GHz matches the target application spectrum without interference constraints.

Antennas RF Selection Notes

Select this model when a low-profile, rigid antenna is required for 2.4 GHz ISM bands. The 0 dBi gain offers a balanced solution for short-range communications where high directionality is unnecessary. The RP-SMA male interface ensures compatibility with standard equipment ports requiring this specific connector type.

Antennas RF Part Context

This part belongs to L-com's HG series of RF antennas, which are engineered for reliable connectivity in wireless environments. The HG2400RDR-RSP specifically addresses needs for compact, durable antennas in consumer electronics and industrial IoT devices operating in the 2.4 GHz spectrum.

Antennas RF Replacement Considerations

HG2402RDR-RSP offers similar form factor but provides 2 dBi gain instead of 0 dBi.
