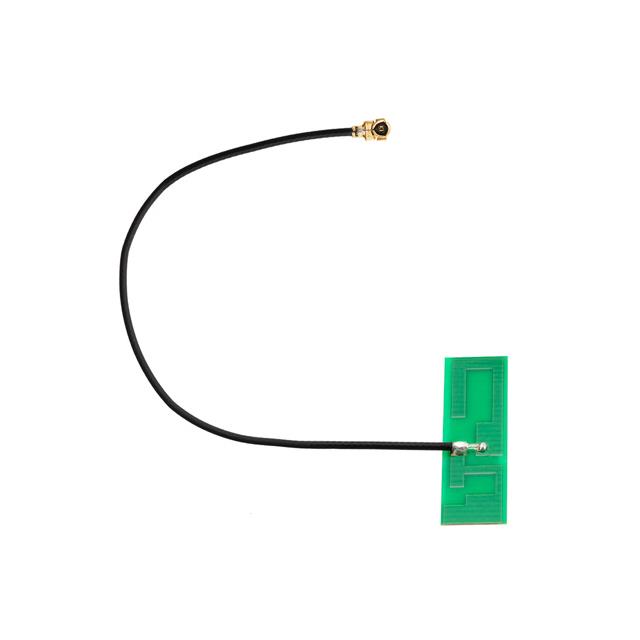

HG2401PU-100IPEX is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANT PCB 2400MHZ 2 DBI IPEX CON 2. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2401PU-100IPEX
- Description：ANT PCB 2400MHZ 2 DBI IPEX CON 2
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：PCB Trace
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：3dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：I-PEX
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：-
- Applications：Bluetooth, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2401PU-100IPEX
Antennas RF Overview
The HG2401PU-100IPEX is an embedded omnidirectional PCB antenna designed for 2.4 GHz wireless applications. It features a gain of 2 dBi and utilizes an IPEX connector interface. The physical dimensions are 27x9mm, suitable for compact device integration.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for consistent signal coverage
- Embedded design facilitates direct integration into wireless devices
- Optimized for 2.4 GHz frequency band operations
Antennas RF Applications
- Wireless IoT devices
- Industrial wireless modules
- Consumer electronics with Wi-Fi capability
Antennas RF Procurement Notes
Verify the specific connector type and mechanical dimensions against the target PCB layout before ordering. Confirm that the 2 dBi gain specification meets the required link budget for the intended application environment. Ensure compatibility with the IPEX interface standard used in the host system design.
Antennas RF Selection Notes
Select this component when a low-profile, embedded solution is required for 2.4 GHz bands. Consider the 27x9mm footprint to ensure adequate clearance on the PCB. Evaluate the 2 dBi gain against higher-gain alternatives if extended range is necessary.
Antennas RF Part Context
This model belongs to L-com's line of embedded PCB antennas. It serves as a compact wireless connectivity solution for manufacturers integrating radio frequency functionality into space-constrained electronic products requiring reliable 2.4 GHz transmission.
Antennas RF Replacement Considerations
The HG2401PUE-100IPEX is a related variant with different dimensions (35x8mm). Verify mechanical fit and connector orientation before substituting.
