HG2403-SDC-3NF

Antennas RF Overview

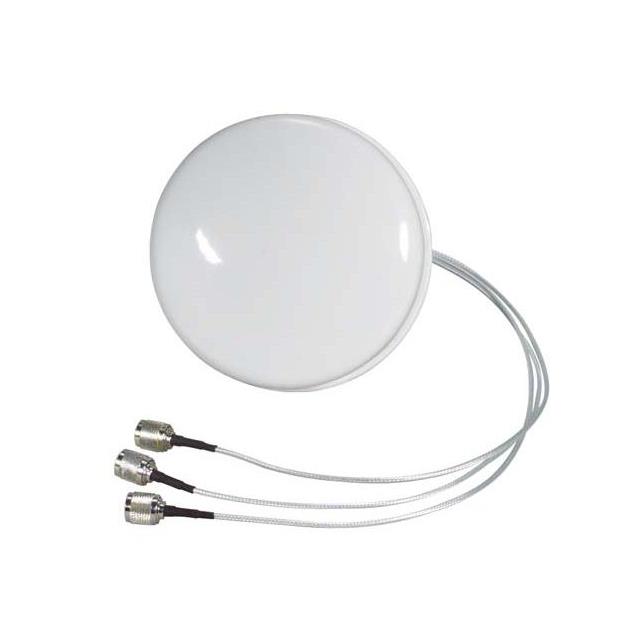

The L-com HG2403-SDC-3NF is a passive RF antenna designed for 2.4 GHz operations, supporting 802.11b/g/n Wi-Fi, WiMax, and WLAN standards. It features a 3 dBi gain rating and utilizes three independent antenna elements to enable spatial diversity MIMO capabilities within a single package. The unit employs an omni-directional radiation pattern suitable for ceiling mounting applications. Connectivity is provided via an 18-inch N-type female connector interface.

Antennas RF Feature Summary

• Supports spatial diversity MIMO through three independent antenna elements integrated into a single housing
• Provides omni-directional coverage with 3 dBi gain at 2.4 GHz frequency band
• Designed for ceiling mount installation in environments susceptible to multi-path interference

Antennas RF Applications

• Wi-Fi network infrastructure deployment
• WLAN system expansion
• WiMax connectivity solutions

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure correct connector type and cable length configuration. Confirm that the N-type female interface matches the receiving equipment requirements. Check for any regional regulatory compliance certifications required for the intended deployment location. Ensure the ceiling mount hardware is compatible with the antenna's physical dimensions and weight specifications.

Antennas RF Selection Notes

Select this model when spatial diversity is required to mitigate multi-path fading in wireless networks. The three-element design offers improved signal reliability compared to single-element antennas. Consider the 18-inch lead length for flexible routing between the access point and the ceiling fixture. Evaluate the 3 dBi gain against site-specific coverage requirements before finalizing the component choice.

Antennas RF Part Context

This component belongs to the L-com HyperLink Wireless SDC series of passive antennas. The series focuses on 2.4 GHz spatial diversity solutions for enterprise wireless environments. The HG2403-SDC-3NF represents the standard variant with fixed cabling and N-type connectors. It complements other models in the family that may offer different connector types or cable lengths.

Antennas RF Replacement Considerations

The HG2403-SDC-3RSP is a documented substitute part number within the same product line. Verify compatibility regarding connector orientation and cable assembly specifications when substituting.
