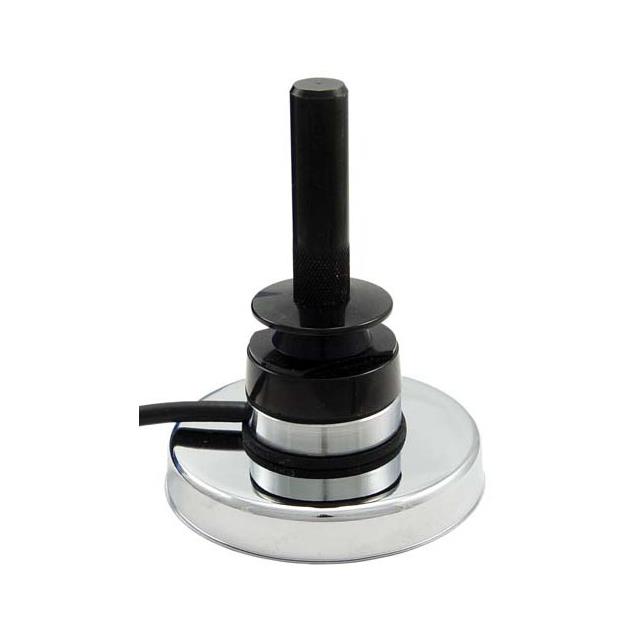

HG2403MGU-NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ/900MHZ 3DBI. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2403MGU-NF
- Description：ANTMAGMNT 2.4GHZ/900MHZ 3DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, Cellular, General ISM, WiFi
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：930MHz, 2.45GHz
- Frequency Range：900MHz ~ 960MHz, 2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：2
- VSWR：1.5
- Return Loss：-
- Gain：3dBi, 3dBi
- Features：Cable - 3.05m
- Termination：N Type Female, N Type Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：3.000" (76.20mm)
- Applications：802.11b/g, Bluetooth, GSM, ISM, Wi-Fi, WLAN
- Power - Max：50 W
Antennas RF datasheet and documents for HG2403MGU-NF
Antennas RF Overview
The L-com HG2403MGU-NF is a dual-band omnidirectional antenna designed for operation in the 900 MHz and 2.4 GHz frequency ranges. It provides a gain of 3 dBi across both bands, ensuring consistent signal coverage. The unit features an N-type female connector interface for secure attachment to compatible RF equipment. A magnetic mounting base allows for flexible installation on ferrous surfaces without permanent modification.
Antennas RF Feature Summary
- Dual-band capability supporting 900 MHz and 2.4 GHz frequencies
- Omnidirectional radiation pattern with 3 dBi gain
- Magnetic mounting base for versatile installation
- N-type female connector interface
Antennas RF Applications
- Wireless communication systems requiring dual-band support
- Mobile WiFi applications in service vehicles
- Multipoint mobile wireless setups
- Industrial wireless sensor networks
Antennas RF Procurement Notes
Verify that the N-type female connector matches the mating connector on the target device. Confirm the operating environment supports magnetic mounting on ferrous surfaces. Ensure the required frequency range includes both 900 MHz and 2.4 GHz bands before procurement.
Antennas RF Selection Notes
Select this model when dual-band operation at 900 MHz and 2.4 GHz is required with a standard N-type female interface. Consider the magnetic mount if temporary or non-permanent installation on metal surfaces is necessary. Compare against models with different connector types if the system infrastructure uses SMA or other interfaces.
Antennas RF Part Context
This component belongs to the HG2403MGU series from L-com, which offers various connector options for the same dual-band antenna design. Variants such as HG2403MGU-RSP and HG2403MGU-NM share identical electrical specifications but differ in connector type and gender. This specific part is defined by its N-type female configuration.
Antennas RF Replacement Considerations
Direct functional equivalents include HG2403MGU-NM (N-type male) and HG2403MGU-RSP (RP-SMA plug), provided the connector interface difference is accommodated. No other L-com part numbers offer identical dual-band performance with an N-type female connector.
