HG2403MGU-SM

Antennas RF Overview

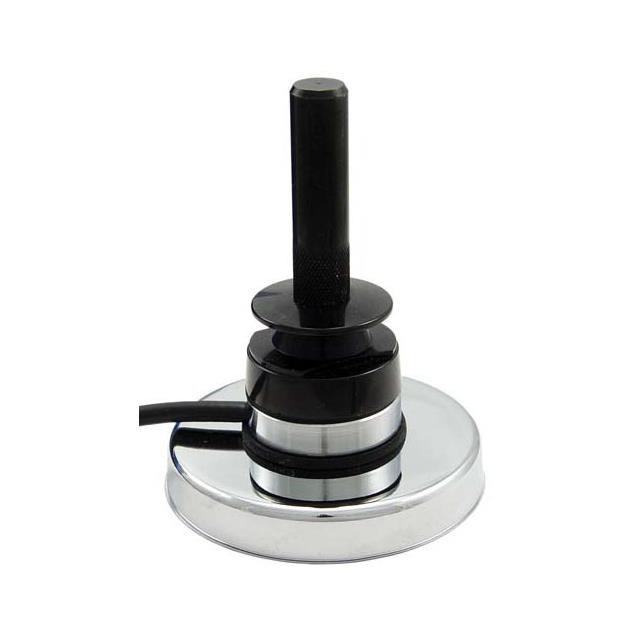

The L-com HG2403MGU-SM is a dual-band omni-directional antenna designed for operation in the 900 MHz and 2.4 GHz frequency ranges. It provides a fixed gain of 3 dBi across both bands, ensuring consistent signal performance without requiring separate antennas for each frequency. The unit features an SMA male connector for direct interface compatibility with standard RF equipment. A magnetic mount base allows for flexible installation on ferrous surfaces, supporting rapid deployment in various environments.

Antennas RF Feature Summary

• Dual-band capability covering 900 MHz and 2.4 GHz ISM frequencies
• Omni-directional radiation pattern for uniform signal distribution
• SMA male connector termination for standard RF interfacing
• Magnetic mounting base for secure attachment to metal surfaces

Antennas RF Applications

• 2.4 GHz ISM band operations
• IEEE 802.11b/g wireless LAN networks
• WiFi network infrastructure
• 2.4 GHz wireless video systems
• Multipoint and mobile communication applications

Antennas RF Procurement Notes

Verify the specific connector type required for your system integration before purchase. Confirm that the SMA male interface matches the receiving port on your target device. Ensure the operating environment supports magnetic mounting on conductive materials. Check regulatory compliance requirements for the intended frequency bands in your region prior to deployment.

Antennas RF Selection Notes

Select this model when dual-band coverage at 900 MHz and 2.4 GHz is required from a single compact unit. Choose the SMA male variant specifically when interfacing with equipment featuring female SMA ports. Consider the magnetic mount requirement if temporary or semi-permanent installation on metal structures is necessary. Evaluate the 3 dBi gain level against range requirements for the specific application scenario.

Antennas RF Part Context

This component belongs to the L-com HG2403MGU series of omni-directional antennas. The series includes variants with different connectors, such as the HG2403MGU-NM with N-type male and HG2403MGU-RSP with RP-SMA plug connectors. All models share the same dual-band frequency specifications and magnetic mounting design, differing primarily in their physical interface standards.

Antennas RF Replacement Considerations

Direct substitutes within the same product line include the HG2403MGU-NM and HG2403MGU-RSP. These alternatives offer identical electrical performance and mounting characteristics but utilize different connector types. Verify connector compatibility with existing cabling and equipment ports before swapping between these variants.
