HG2403MGURB-NF

Antennas RF Overview

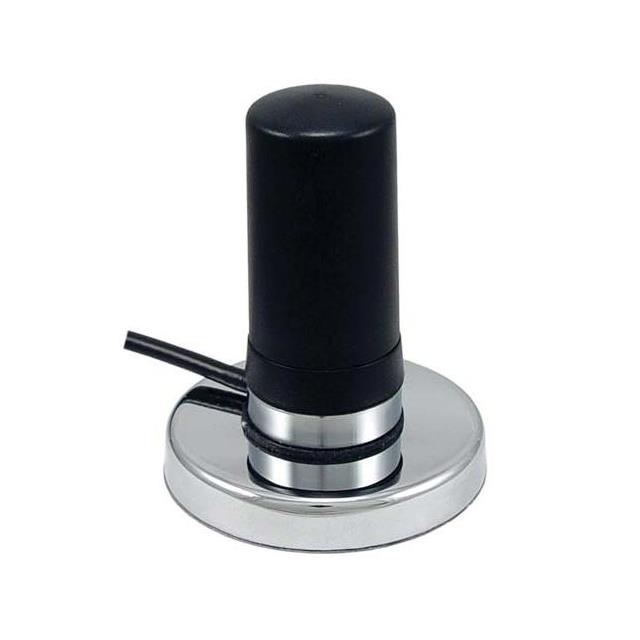

The L-com HG2403MGURB-NF is a 2.4 GHz omnidirectional whip antenna designed for mobile wireless applications. It features a magnetic mount base and an N-type female connector, with an N-type male variant also referenced in documentation. The unit operates within the ISM band, supporting IEEE 802.11b/g, Bluetooth, Wi-Fi, and WLAN protocols. Constructed from black acrylonitrile butadiene styrene (ABS), it provides 3 dBi gain and maintains a 50 Ohm impedance. The antenna supports vertical polarization and handles up to 100 W of power.

Antennas RF Feature Summary

• Compact whip design with integrated magnetic mounting base for rapid installation on metal surfaces
• Omnidirectional radiation pattern providing uniform signal coverage in all horizontal directions
• Robust ABS housing suitable for harsh mobile environments

Antennas RF Applications

• Multipoint mobile service vehicles
• IEEE 802.11b/g Wi-Fi networks
• Bluetooth connectivity systems
• WLAN infrastructure

Antennas RF Procurement Notes

Verify connector gender configuration carefully, as documentation references both N-type female and male variants for similar model numbers. Confirm that the specific order matches the required interface type for your equipment. Ensure the magnetic mount base is compatible with the intended vehicle or surface material. Check datasheet specifications for operating frequency range alignment with your network requirements.

Antennas RF Selection Notes

Select this component when a low-profile, magnetically mounted solution is required for 2.4 GHz mobile communications. The 3 dBi gain offers standard coverage without excessive size. Consider the N-type connector compatibility with existing cabling. This model is appropriate for indoor or outdoor mobile use where quick deployment and removal are necessary.

Antennas RF Part Context

This antenna belongs to L-com's HG series of compact mobile antennas. It shares design characteristics with other models in the family, such as the HG2403MGU-NF, which may support additional frequency bands like 900 MHz. The HG2403MGURB-NF specifically targets the 2.4 GHz spectrum for common wireless standards.

Antennas RF Replacement Considerations

HG2403MGU-NF may serve as a functional alternative if broader frequency support including 900 MHz is acceptable. Verify connector gender and mounting style compatibility before substitution.
