HG2403UR-BAN12RTP

Antennas RF Overview

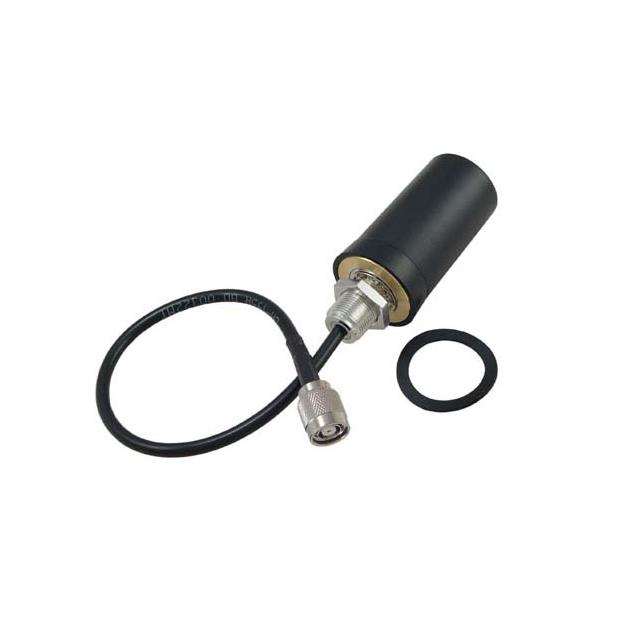

The HG2403UR-BAN12RTP is a 2.4 GHz omnidirectional RF antenna designed for IEEE 802.11b, 802.11g, Bluetooth, and ISM applications. It features a 3 dBi gain rating and utilizes a black radome enclosure suitable for outdoor environments. The unit includes a 12-inch (30.5 cm) low-loss lead terminated with an RP-TNC connector. This compact bulkhead-mount antenna provides broad coverage for WLAN systems.

Antennas RF Feature Summary

• Radome enclosed design ideal for outdoor use
• Compact bulkhead mount configuration
• Integrated 12-inch low-loss antenna lead

Antennas RF Applications

• IEEE 802.11b wireless LANs
• IEEE 802.11g wireless LANs
• Bluetooth connectivity systems
• ISM band operations

Antennas RF Procurement Notes

Verify the specific connector polarity variant required for your system integration. Confirm that the 12-inch lead length meets spatial requirements. Ensure the RP-TNC interface matches the receiving device port. Validate environmental sealing needs against the radome specifications provided in official documentation.

Antennas RF Selection Notes

Select this model when a compact, weather-resistant antenna solution is needed for 2.4 GHz networks. The integrated lead simplifies installation by reducing the need for separate cable assemblies. Consider the bulkhead mounting style for secure panel attachment in industrial or outdoor settings.

Antennas RF Part Context

This component belongs to L-com's line of RF antennas and amplifiers. L-com specializes in providing interconnect solutions for wired and wireless applications. The product series focuses on delivering reliable performance for WLAN and Bluetooth deployments across various industries.

Antennas RF Replacement Considerations

Check datasheets for compatible models such as HG2403UR-BAN12RSP if different termination styles are required. Verify frequency range and gain specifications match before substitution.
