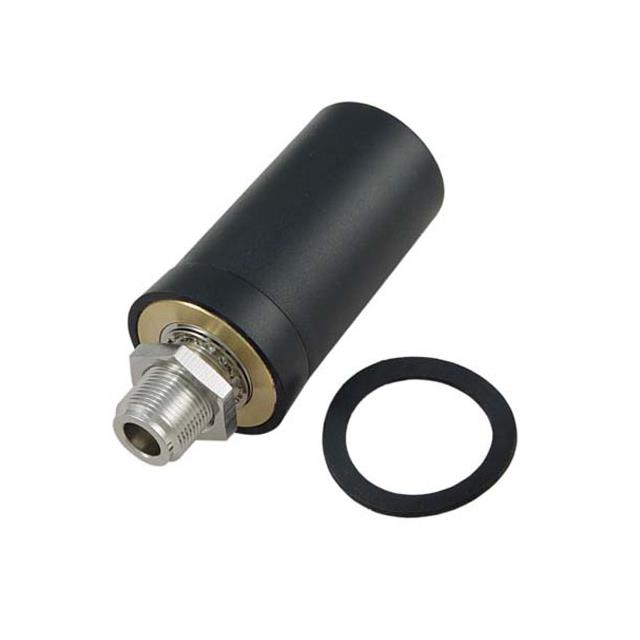

HG2403UR-NFBB is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 3DBI BLK. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2403UR-NFBB
- Description：ANTOMNI 2.4GHZ 3DBI BLK
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：IP66
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：2.700" (68.58mm)
- Applications：802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：100 W
Antennas RF datasheet and documents for HG2403UR-NFBB
