HG2403UR-NMOB is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTOMNI 2.4GHZ 3DBI BLK. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2403UR-NMOB
- Description：ANTOMNI 2.4GHZ 3DBI BLK
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：2.700" (68.58mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2403UR-NMOB
Antennas RF Overview

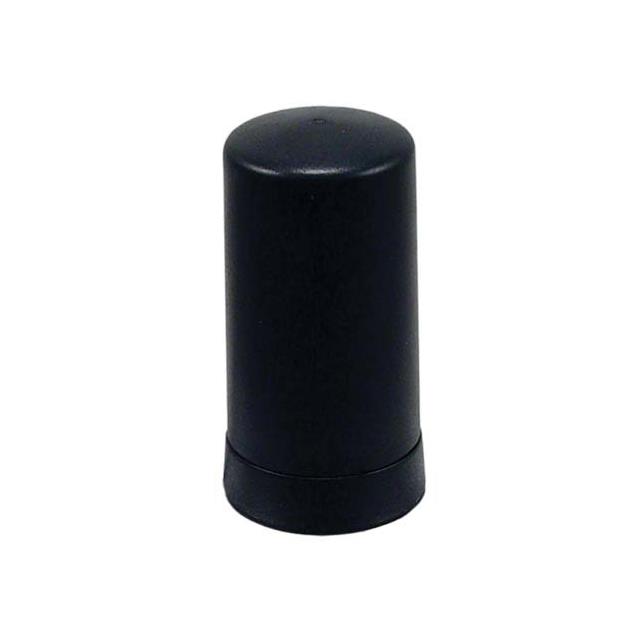

The L-com HG2403UR-NMOB is a black omnidirectional RF antenna designed for the 2.4 GHz to 2.5 GHz frequency range, specifically targeting the ISM band applications. It features a fixed gain of 3 dBi and maintains a maximum VSWR of 2 with a 50-ohm input impedance. The unit utilizes an NMO/TAD connector interface and includes DC short lightning protection. Its compact radome design supports vertical polarization, making it suitable for WiFi and Bluetooth deployments requiring reliable signal transmission in constrained spaces.
Antennas RF Feature Summary
- Omnidirectional radiation pattern optimized for 2.4 GHz ISM band operations
- Integrated DC short circuit lightning protection mechanism
- Compatible with NMO and TAD mounting interfaces
Antennas RF Applications
- WiFi and WLAN network infrastructure
- Bluetooth device connectivity systems
- ISM band wireless communication links
Antennas RF Procurement Notes
Verify the specific connector type matches your installation requirements, as this model specifies NMO/TAD compatibility. Confirm that the operating frequency range aligns with your system's 2.4 GHz to 2.5 GHz needs. Ensure the 3 dBi gain and 50-ohm impedance are sufficient for your link budget calculations before finalizing procurement decisions.
Antennas RF Selection Notes
Choose this component when a low-profile, black radome antenna is required for 2.4 GHz applications. It is appropriate for installations where NMO or TAD mounting bases are standard. Select this model over higher-gain variants if space constraints limit antenna size, keeping in mind the trade-off between physical dimensions and the fixed 3 dBi gain specification.
Antennas RF Part Context
This part belongs to the L-com HG2403UR series of omnidirectional antennas. It shares similar electrical characteristics with models like the HG2403UR-NFBB but differs in its connector interface. The NMO variant is distinct from other connectors in the product line, offering specific mounting compatibility for vehicle or pole-mounted applications common in mobile communications.
Antennas RF Replacement Considerations
The HG2403UR-NFBB serves as a functional substitute within the same series, sharing identical electrical specifications including 3 dBi gain and 2.4–2.5 GHz operation. Verify that the connector interface difference does not impact your existing cabling or mounting hardware before swapping components.
