HG2406UP-NM

Antennas RF Overview

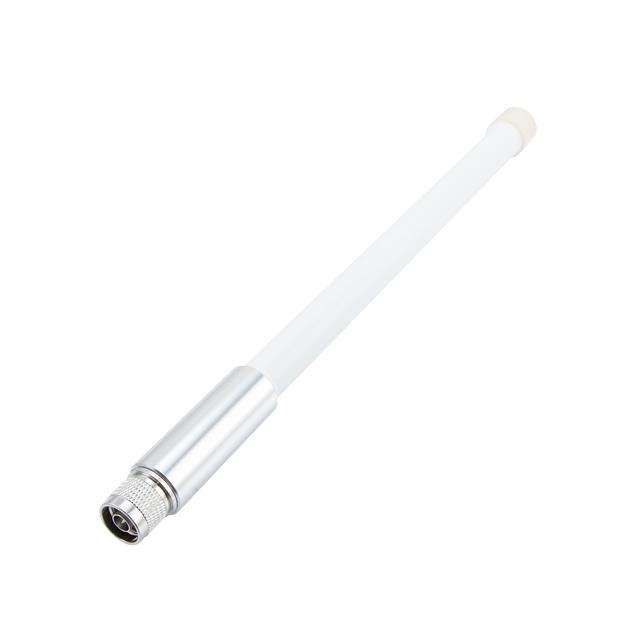

The HG2406UP-NM is a passive omnidirectional antenna manufactured by L-com, designed for operation within the 2.4 GHz ISM band. It provides a gain of 6 dBi across the frequency range of 2400 to 2500 MHz. The component features an N-type male connector for interface connectivity. This compact and lightweight unit serves as an economical yet high-performance solution for wireless communication applications requiring reliable signal transmission in unlicensed spectrum environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for uniform signal distribution
• Optimized for 2.4 GHz ISM band operations
• Compact and lightweight structural design

Antennas RF Applications

• Wireless LAN (WLAN) systems
• Bluetooth device connectivity
• 802.11b/g/n network infrastructure

Antennas RF Procurement Notes

Verify the specific datasheet version when sourcing this component to ensure compatibility with current manufacturing standards. Confirm that the N-type male connector specification matches your system requirements. Cross-reference the part number HG2406UP-NM with official L-com documentation to validate performance parameters against your intended deployment environment.

Antennas RF Selection Notes

Select this model when a cost-effective omnidirectional solution is required for the 2.4 GHz band. The 6 dBi gain offers a balance between signal strength and physical size. Ensure the N-type male interface aligns with existing cabling and mounting hardware before finalizing the procurement decision for integration into wireless networks.

Antennas RF Part Context

This antenna belongs to L-com's series of passive RF components. It is distinct from other models such as the HG2407UP-NM, which may offer different gain or frequency characteristics. The HG2406UP-NM specifically targets the 2400-2500 MHz range, distinguishing it from broader spectrum variants within the manufacturer's portfolio.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
