HG2407RD-SM

Antennas RF Overview

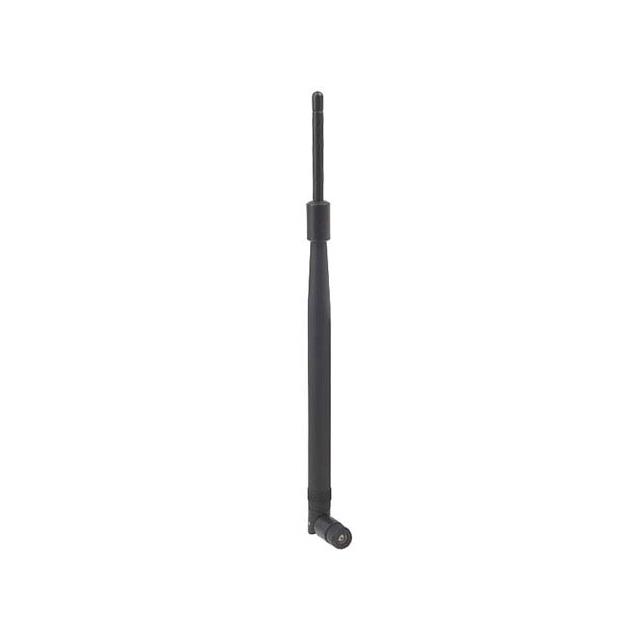

The L-com HG2407RD-SM is a high-performance 2.4 GHz omnidirectional rubber duck antenna designed for WiFi, WLAN, Bluetooth, and ISM applications. It operates within the 2.4 to 2.5 GHz frequency range and provides a gain of 7 dBi. The component features a 50-ohm impedance and utilizes an SMA male connector interface. Constructed as a coaxial sleeve design, it offers flexible tilt and swivel capabilities to optimize signal coverage.

Antennas RF Feature Summary

• Omnidirectional radiation pattern ensures broad wireless coverage
• Flexible rubber duck design allows for adjustable tilt and swivel positioning
• High performance construction with 7 dBi gain capability

Antennas RF Applications

• WiFi network installations
• WLAN connectivity systems
• Bluetooth device integration
• ISM band operations

Antennas RF Procurement Notes

Verify the specific connector type required for your application, as this model uses an SMA male interface. Confirm availability status, as some listings indicate discontinuation or stock limitations. Ensure compatibility with 50-ohm system requirements before finalizing procurement decisions.

Antennas RF Selection Notes

Select this antenna when broad omnidirectional coverage is required for 2.4 GHz wireless standards. The flexible design suits environments needing directional adjustment. Compare against models with different connectors, such as N-type or RP-SMA, if interface compatibility differs from current system specifications.

Antennas RF Part Context

This component belongs to the HG2407RD series of rubber duck antennas by L-com. Variants in this family include models with N-type (HG2407RD-NM) and RP-SMA (HG2407RD-RSP) connectors. All share similar electrical characteristics but differ in physical interface types for system integration.
