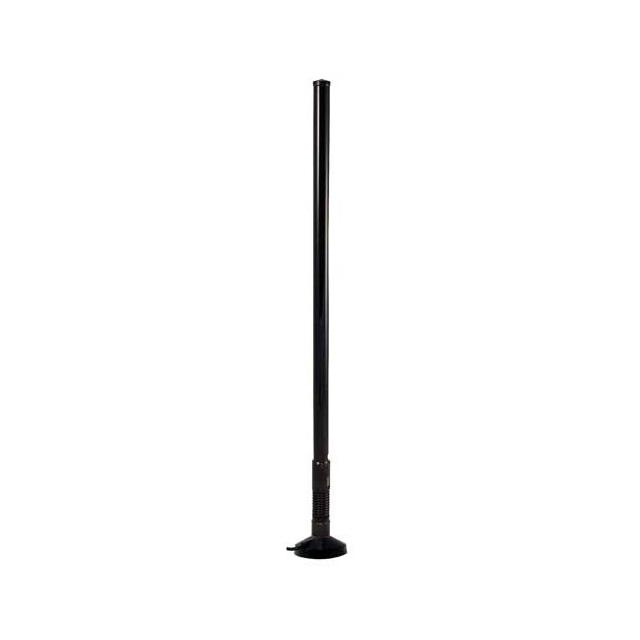

HG2408MGUR-RTP is listed in the Antennas RF range at ChipApex. The manufacturer field lists L-com. Its product description is ANTMAGMNT 2.4GHZ 8DBI RTP 10'. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for HG2408MGUR-RTP
- Description：ANTMAGMNT 2.4GHZ 8DBI RTP 10'
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：8dBi
- Features：Cable - 3.05m
- Termination：RP-TNC
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：17.500" (444.50mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for HG2408MGUR-RTP
Antennas RF Overview
The HG2408MGUR-RTP is a HyperLink Wireless 2.4 GHz omnidirectional antenna designed for the ISM band. It features an 8 dBi gain and operates within the 2.4 GHz to 2.5 GHz frequency range. The unit includes a magnetic mount base and a 10-foot cable assembly terminated with an N-type male connector. Constructed with a radome enclosure, it supports applications such as Wi-Fi, Bluetooth, and WLAN connectivity.
Antennas RF Feature Summary
- Omnidirectional radiation pattern for consistent signal coverage
- Integrated magnetic mounting base for flexible installation
- Radome enclosure protecting internal components
- Pre-attached 10-foot cable with N-type male connector
Antennas RF Applications
- Wi-Fi network infrastructure
- Bluetooth device connectivity
- WLAN system deployment
- ISM band wireless communication
Antennas RF Procurement Notes
Verify that the specific suffix 'RTP' corresponds to the required cable length and connector configuration. Confirm compatibility with the N-type male interface on the receiving equipment. Ensure the magnetic mount meets the structural requirements of the intended installation environment.
Antennas RF Selection Notes
Select this model when a fixed 10-foot cable length and magnetic mounting are required. The 8 dBi gain provides enhanced performance compared to standard rubber duck antennas. Verify that the N-type male connector aligns with the system's input port specifications.
Antennas RF Part Context
This component belongs to the L-com HyperLink series, which focuses on high-performance wireless connectivity solutions. The HG2408MGUR-RTP variant specifically addresses needs for elevated feed antennas in the 2.4 GHz ISM band, combining directional efficiency with omnidirectional coverage capabilities.
Antennas RF Replacement Considerations
The HG2408U-NF serves as a related model within the same product family. Differences include cable length, connector type, and mounting style. Verify these physical and electrical distinctions before substitution.
