HG2408U-NM

Antennas RF Overview

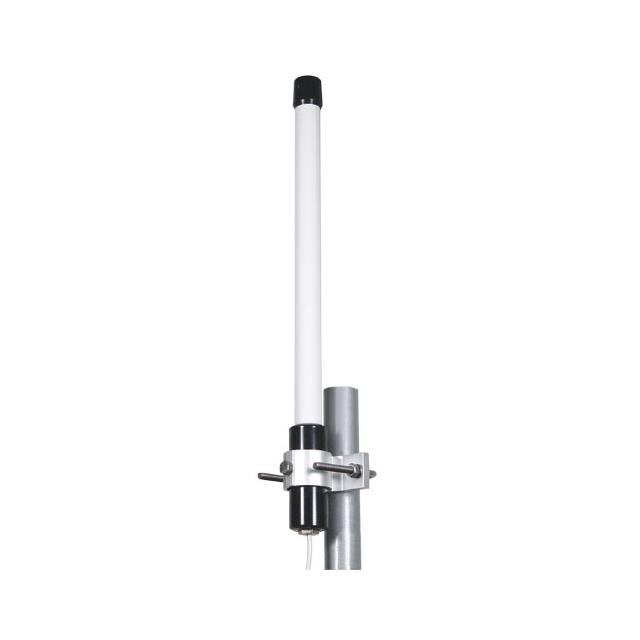

The L-com HG2408U-NM is a high-performance omnidirectional whip antenna designed for the 2.4 GHz ISM band, supporting IEEE 802.11b/g/n WLANs and Bluetooth. It features an N-type male connector and delivers 8 dBi gain across a 2.4 GHz to 2.5 GHz frequency range. The unit has a maximum power rating of 100 W and a VSWR of 2. Constructed with a UV-stable fiberglass radome, it measures 16.85 inches (427.99 mm) in height and includes a mounting system for mast installation.

Antennas RF Feature Summary

• Omnidirectional radiation pattern optimized for multipoint and mobile applications
• Durable UV-stable fiberglass radome ensures all-weather operation
• Compact and lightweight design suitable for various mounting scenarios

Antennas RF Applications

• IEEE 802.11b/g/n Wireless LAN networks
• Bluetooth connectivity systems
• Public wireless hotspot deployments
• ISM band communication links

Antennas RF Procurement Notes

Verify that the specific suffix 'NM' corresponds to the N-type male connector configuration required for your system interface. Confirm that the mast mount installation method aligns with your physical infrastructure constraints. Ensure environmental conditions are within the operational limits of the UV-stable fiberglass construction. Cross-reference the 100 W power handling capability against your transmitter output specifications to prevent damage.

Antennas RF Selection Notes

Select this model when an omnidirectional coverage pattern is required for 2.4 GHz applications. The N-type male interface dictates compatibility with mating cables or devices featuring female connectors. Consider the 16.85-inch height for clearance requirements during mast installation. This antenna is appropriate for both stationary and mobile setups requiring robust outdoor durability and standard ISM band performance.

Antennas RF Part Context

This component belongs to the HyperGain series from L-com, focusing on high-performance wireless solutions. The HG2408U family offers various connector options, with the NM variant specifically utilizing an N-type male interface. It is engineered for reliability in demanding RF environments, providing consistent gain and bandwidth for critical data transmission tasks.

Antennas RF Replacement Considerations

The HG2408U-NF serves as a direct functional substitute if an N-type female connector is acceptable. Other variants such as HG2408U-RSP or HG2408U-RSJ offer different connector types but maintain identical electrical performance characteristics. Verify connector gender compatibility before swapping to ensure proper cable interfacing.
