HG2409MGRD-RTP

Antennas RF Overview

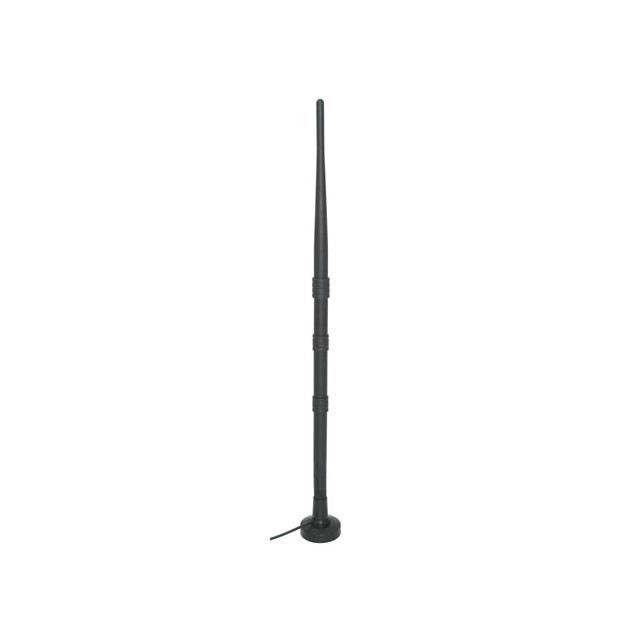

The L-com HG2409MGRD-RTP is a 2.4 GHz omnidirectional rubber duck antenna designed for wireless communication systems requiring enhanced signal strength. It features a gain of 9 dBi and operates within the 2.4 GHz to 2.5 GHz frequency range with a 50-ohm impedance. The unit includes a 5-foot (1.5-meter) cable terminated with an RP-TNC plug connector. A magnetic mount base facilitates secure attachment to metallic surfaces, ensuring stable positioning for reliable RF performance in various environments.

Antennas RF Feature Summary

• Omnidirectional radiation pattern provides broad coverage for consistent signal transmission
• High gain design enhances wireless signal strength over standard antennas
• Integrated magnetic mount allows for quick and secure installation on metal surfaces

Antennas RF Applications

• Wireless LAN infrastructure deployment
• Point-to-point or point-to-multipoint radio links
• Industrial wireless sensor networks
• Public safety communication systems

Antennas RF Procurement Notes

Verify that the RP-TNC connector polarity matches the receiving equipment interface requirements. Confirm that the operating environment temperature range aligns with the antenna's specified limits. Ensure the magnetic mount surface is clean and ferrous for optimal adhesion. Check cable length suitability for the specific installation layout to avoid excessive signal loss.

Antennas RF Selection Notes

Select this model when high gain is required for extended range applications at 2.4 GHz. The magnetic mount offers flexibility for temporary or semi-permanent installations where drilling is not feasible. Consider the 5-foot cable length for proximity to the mounting location. Verify compatibility with existing RP-TNC ports on routers or access points before purchase.

Antennas RF Part Context

This component belongs to L-com's HG2409 series of 2.4 GHz antennas. It shares similar electrical characteristics with models like the HG2409RD-RTP but distinguishes itself through the inclusion of a magnetic mount base and specific cabling configuration. The series targets users needing robust, high-gain solutions for industrial and commercial wireless deployments.

Antennas RF Replacement Considerations

The HG2409RD-RTP serves as a functional substitute if the magnetic mount is not required. Ensure any replacement maintains the 9 dBi gain and RP-TNC connector type to preserve system compatibility and performance levels without modification.
