HG2409P-TF

Antennas RF Overview

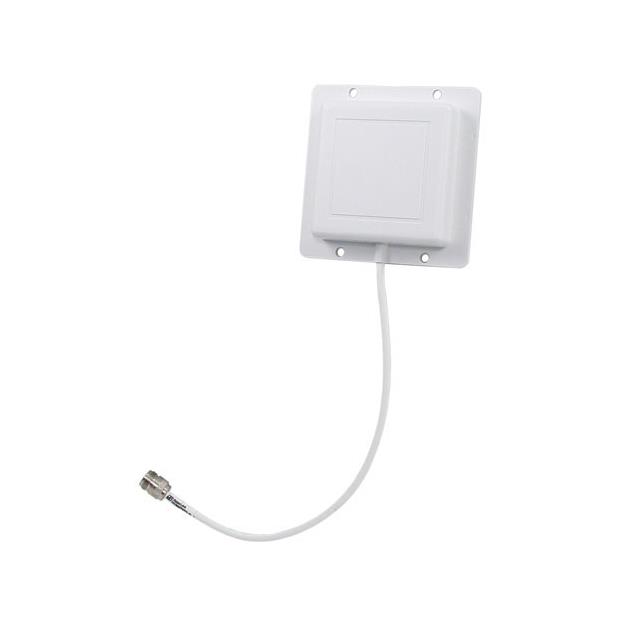

The L-Com HG2409P-TF is a directional flat patch antenna designed for the 2.4 GHz to 2.5 GHz ISM band, providing 8 dBi gain. It features a TNC female connector and includes a 12-inch low-loss coaxial cable. The unit utilizes a solid brass element within a UV-stable, UL flame-rated radome, ensuring durability for indoor and outdoor deployment in Wi-Fi and Bluetooth applications.

Antennas RF Feature Summary

• Compact flat patch design with high directional gain
• Durable UV-stable and UL flame-rated radome construction
• Low-loss solid brass radiating element
• Integrated short-length coaxial cable

Antennas RF Applications

• Indoor and outdoor Wi-Fi network expansion
• Bluetooth signal transmission systems
• Public wireless access point connectivity

Antennas RF Procurement Notes

Verify that the specific model suffix corresponds to the required connector type, as variations exist between N-female and TNC interfaces. Confirm the cable length matches system requirements, noting this specific variant includes a 12-inch lead. Ensure environmental ratings align with installation conditions, specifically checking for UV stability and flame resistance certifications for outdoor exposure.

Antennas RF Selection Notes

Select this component when a compact, high-gain directional solution is needed for the 2.4 GHz band. The integrated cable simplifies installation compared to bare antennas. Consider the TNC interface compatibility with existing equipment. This model suits scenarios requiring robust physical protection against weathering while maintaining broad coverage patterns for local area networking.

Antennas RF Part Context

This antenna belongs to the HyperGain HG2409P series, characterized by high-performance directional capabilities. The series offers variants with different connectors, such as N-female options. The HG2409P-TF specifically denotes the version equipped with a TNC connector and a fixed 12-inch cable assembly, distinguishing it from other configurations in the product line.

Antennas RF Replacement Considerations

The HG2409P-NF serves as a direct substitute if an N-female connector is acceptable instead of the TNC interface. Both models share identical electrical specifications, including 8 dBi gain and frequency range. Verify mechanical fit and cable length differences before swapping.
